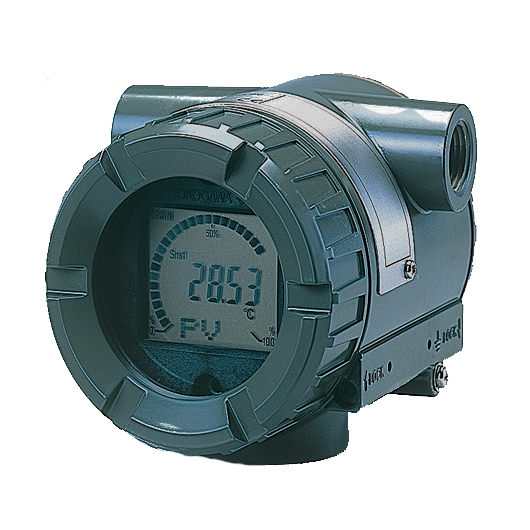

Part Number: YTA110-EA2DN/C1/KU2/D2Model and Suffix CodesModel: YTA110 - Temperature TransmitterOutput Signal: -E - 4 to 20mA DC with digital communication (HART protocol, refer to GS 01C50T01-00EN)A - Always AElectrical Connection: 2 - 1/2 NPT femaleIntegral Indicator: D - with digital indicatorMounting Bracket: N - NoneOption Codes:/C1 -Output signal low-side in Transmitter failureOutput signal low-side: -5%, 3.2 mA DC or less.Sensor burnout is also set to 'LOW': -2.5%, 3.6 mA DC./KU2 -ATEXATEX Intrinsically safe ia, Flameproof approval and Intrinsically safe ic combination[Intrinsically safe ia approval] Applicable standard: EN 60079-0:2012, EN 60079-11:2012, EN 60079-26:2007 Certificate: KEMA 02ATEX1026 X II 1 G Ex ia IIC T4...T5 Ga Ambient Temerature: -40 to 70?C for T4, -40 to 50?C for T5 Enclosure: IP66/IP67 Supply/Output circuit: Ui=30V, Ii=165mA, Pi=900mW, Ci=20nF, Li=730?H Input circuit: Uo=9V, Io=40mA, Po=90mW, Co=0.7?F, Lo=10mH Electrical Connection: 1/2 NPT female and M20 female?[Flameproof and Dust Ignition Proof Approval] Applicable Standard: EN 60079-0: 2012+A11: 2013, EN 60079-1: 2007, EN 60079-31:2009 Certificate: KEMA 07ATEX0130 II 2 G Ex d IIC T6/T5 Gb, II 2 D Ex tb IIIC T70?C, T90?C Db Ambient Temperature for Gas Atmospheres: -40 to 75?C for T6, -40 to 80?C for T5 Ambient Temperature for Dust Atmospheres: -30 to 65?C for T70?C, -30 to 80?C for T90?C Enclosure: IP66/IP67 Electrical Connection: 1/2 NPT female and M20 female?[Intrinsically safe ic] Applicable standard: EN 60079-0:2012, EN 60079-11:2012 II 3 G Ex ic IIC T5...T4 Gc Ambient Temperature: -30 to 70?C for T4, -30 to 50?C for T5 Enclosure: IP66/IP67 Supply/Output circuit: Ui=30V, Ci=28nF, Li=730?H Input circuit: Uo=9V, Io=40mA, Po=90mW, Co=0.7?F, Lo=10mH Electrical connection: 1/2 NPT female and M20 female?/D2 -Calibration UnitDegree F/Degree R unitNOTE:Applicable for Electrical Connection Code 2 and 4.
