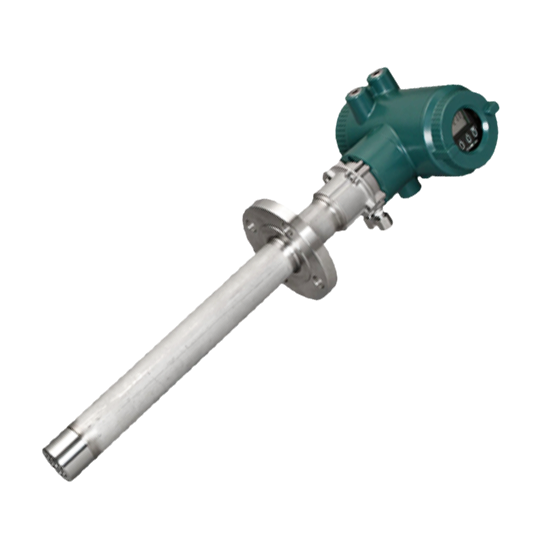

ZR202G-040-S-A-A-C-R-G-E-A | Yokogawa Zirconia Oxygen Humidity Analyzer

Model and Suffix Code Model ZR202G Integral type Zirconia Oxygen Humidity Analyzer Length -040 0.4 meter Wetted Material -S Stainless Steel Flange -A ANSI CLASS 150-2-RF (equivalent) flange Auto Calibration -A Horizontal mounting¹ Reference Gas -C Natural convection Gas Thread -R Rc1/4 Connection box thread -G Pg13.5 Instruction Manual -E English -A Always -A No need to specify the option codes, /CV and /SV, since the check valves are provided with the Automatic Calibration Unit. Automatic calibration cannot be used when natural convection is selected as reference air.
