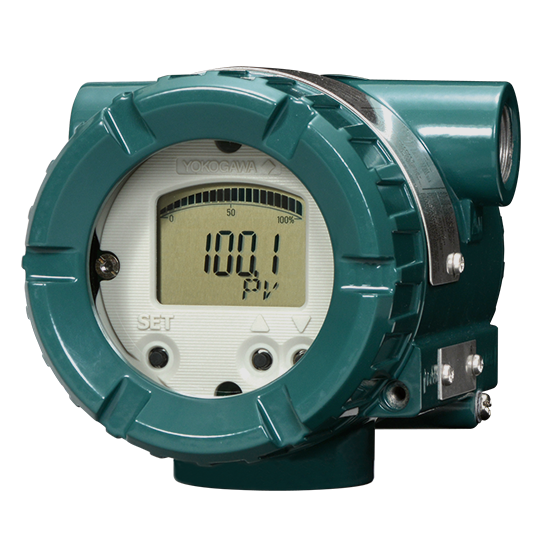

Ordering Information Model YTA610 YTA610 Temperature Transmitter Output signal -J 4 to 20 mA DC with digital communication HART 7 protocol A Always A Sensor input 2 Double Housing code C Stainless Electrical connection 2 1/2 NPT female Integral indicator D Digital indicator with Local Operating Switch Mounting bracket K SUS316 stainless steel 2-inch vertical pipe mounting bracket Wired tag plate /N4 SUS316 stainless steel tag plate wired onto transmitter FM (US) /FU1 4-20mA:[Intrinsically safe approval/non-incendive approval] Applicable standard: Class 3600:2011, Class 3610:2015, Class 3611:2004, Class 3810:2005, ANSI/ISA-60079:2013, ANSI/ISA-60079-11:2014, NEMA 250:2003, ANSI/IEC 60529:2004 (R2011) Intrinsically safe for Class I, II, III Division 1, Groups A, B, C, D, E, F, G, T5 ... T4 Class I Zone 0 AEx ia IIC T5 ... T4 Non-incendive for Class I, II, Division 2, Groups A, B, C, D, F, G, T5 ... T4 Class III, Division 1 T5 ... T4 Class I Zone 2 Group IIC T5 ... T4 Ambient Temperature: -40 tp 70°C for T4, -40 to 50°C for T5 Enclosure Type 4X, IP66/IP67 in accordance with only IEC 60529 Entity Parameters: Intrinsically safe for Supply/Output circuit: Ui30V, li=200mA, Pi=0.1W, Ci=22nF, Li=0mH Sensor circuit: Uo=6V, lo=90=mA, Po=135mW, Co=10µF, Lo=3.9mH Non-incendive for Supply/Output circuit: Ui=30V, Ci=22nF, Li=0mH Sensor circuit: Uo=6V, Io=90mA, Po=135mW, Co=10µF, Lo=3.9mH Dielectric strength: 500 V a.c.r.m.s., 1 min [+, -, C, 1, 2, 3, 4, 5] to Earth terminal [+, -, C] to [1, 2, 3, 4, 5][Explosionproof approval] Applicable standard: Class 3600, Class 3615, Class 3810, ANSI/NEMA250 Class I, Division 1, Groups A, B, C, D.; Class II/III, Division 1, Groups E, F and G. "FACTORY SEALED, CONDUIT SEAL NOT REQUIRED." Enclosure Ratings: TYPE 4X Temperature Class: T6 Ambient Temperature: -40 to 60°C (-40 to 140°F) Electrical Connection: 1/2 NPT female(1) Applicable for Electrical Connection Code 2.
