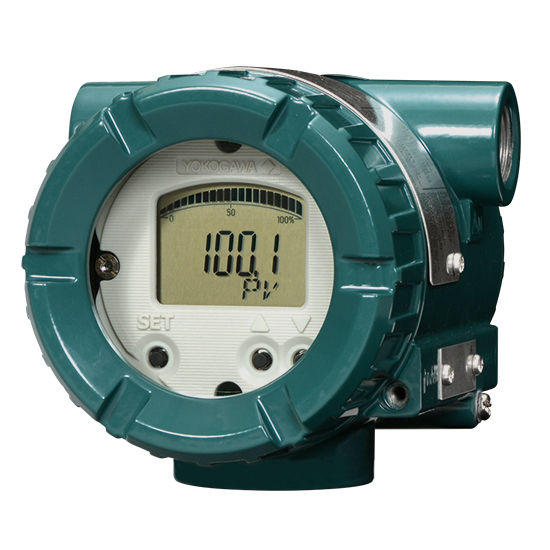

YTA610-JA1A4DN/KU2/C2 | Yokogawa YTA610 Temperature Transmitter

Model and Suffix Codes Model YTA610 YTA610 Temperature Transmitter Output signal -J 4 t0 20 mA DC with digital communication HART 7 protocol A Always A Sensor input 1 Single Housing code A Aluminum Electrical connection 4 M20 female Integral indicator D Digital indicator with Local Operating Switch Mounting bracket N None ATEX /KU2 4-20mA:[Intrinsically safe approval]Applicable Standard: EN 60079-0: 2012+A11:2013, EN 60079-11: 2012Certificate No. FM16ATEX0019XII 1 G Ex ia IIC T5...T4 GaII 2 (1) D Ex ia [ia Da] IIIC T135°C DbAmbient Temperature: –40 to +70°C for T4, –40 to +50°C for T5, –30 to +70°C for IIICEnclosure: IP66/IP67Electrical parameters:Supply/Output circuit: Terminals: +, –Ui=30V, Ii=200mA, Pi=1.0W, Ci=22nF, Li=0mHSensor circuit: Terminals: 1, 2, 3, 4, 5Uo=6V, Io=90mA, Po=135mW, Co=10µF, Lo=3.9mHDielectric strength: 500 V a.c.r.m.s.,1 min (Without /A)[Intrinsically safe ic]Applicable Standard: EN IEC 60079-0, EN 60079-11Certificate: Not Applicable as per Annex VIII to ATEX 2014/34/EUII 3 G Ex ic IIC T5...T4 GcAmbient Temperature: –30 to +70°C for T4, –30 to +50°C for T5Enclosure: IP66/IP67Overvoltage category: IElectrical parameters:Supply/Output circuit: Terminals: +, – Ui=30V, Ci=22nF, Li=0mHSensor circuit: Terminals: 1, 2, 3, 4, 5Uo=6V, Io=90mA, Po=135mW, Co=10µF, Lo=3.9mHDielectric strength: 500 V a.c.r.m.s.,1 min (Without /A)[Flameproof and Dust Ignition Proof Approval]Applicable Standard: EN IEC 60079-0, EN 60079-1, EN 60079-31Certificate: KEMA 07ATEX0130XII 2 G Ex db IIC T6/T5 Gb, II 2 D Ex tb IIIC T70°C/T90°C DbAmbient Temperature for Gas Atmospheres: –40 to 75°C for T6, –40 to 80°C for T5Ambient Temperature for Dust Atmospheres: –30 to 65°C for T70°C, –30 to 80°C for T90°CEnclosure: IP66/IP67Electrical Connection: 1/2 NPT female and M20 female(1) NAMUR NE43 compliant(2) /C2 Output signal limits: 3.8 mA to 20.5 mAFailure alarm down-scale: output status at CPU failure and hardware error is –5%, 3.2 mA or less.Sensor burnout is also set to Low: –2.5%, 3.6 mA DC. Applicable for Electrical Connection Code 2 and 4. Not applicable for Fieldbus type.
