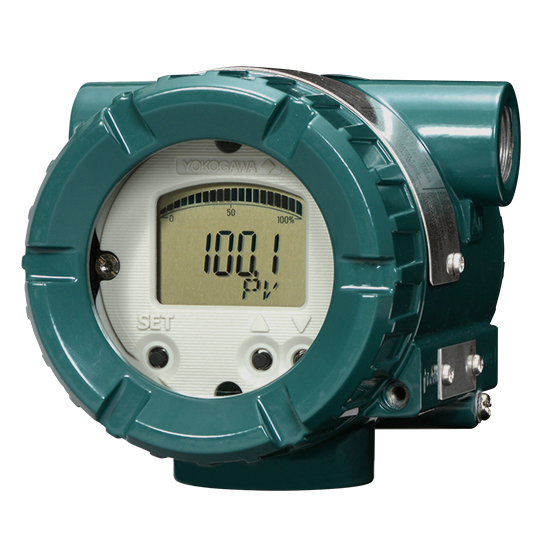

YTA610-JA1A4DD/X2/N4/KU2 | Yokogawa YTA610 Temperature Transmitter

Model and Suffix Codes Model YTA610 YTA610 Temperature Transmitter Output signal -J 4 t0 20 mA DC with digital communication HART 7 protocol A Always A Sensor input 1 Single Housing code A Aluminum Electrical connection 4 M20 female Integral indicator D Digital indicator with Local Operating Switch Mounting Bracket D SUS304 stainless steel 2-inch vertical pipe mounting bracket Painting(1) /X2 Coating change(2) - High anti-corrosion coating Wired tag plate /N4 SUS316 stainless steel tag plate wired onto transmitter ATEX /KU2 4-20mA:[Intrinsically safe ia approval] Applicable Standard: EN IEC 60079-0, EN 60079-11 Certificate No. FM16ATEX0019X II 1 G Ex ia IIC T5…T4 Ga II 2 (1) D Ex ia [ia Da] IIIC T135°C Db Ambient Temperature: –40 to +70°C for T4, –40 to +50°C for T5, –30 to +70°C for IIIC Enclosure: IP66/IP67 Electrical parameters: Supply/Output circuit: Terminals: +, – Ui=30V, Ii=200mA, Pi=1.0W, Ci=22nF, Li=0mH Sensor circuit: Terminals: 1, 2, 3, 4, 5 Uo=6V, Io=90mA, Po=135mW, Co=10µF, Lo=3.9mH Dielectric strength: 500 V a.c.r.m.s.,1 min (Without /A)[Intrinsically safe ic] Applicable Standard: EN IEC 60079-0, EN 60079-11 Certificate: Not Applicable as per Annex VIII to ATEX 2014/34/EU II 3 G Ex ic IIC T5...T4 Gc Ambient Temperature: –30 to +70°C for T4, –30 to +50°C for T5 Enclosure: IP66/IP67 Overvoltage category: I Electrical parameters: Supply/Output circuit: Terminals: +, – Ui=30V, Ci=22nF, Li=0mH Sensor circuit: Terminals: 1, 2, 3, 4, 5 Uo=6V, Io=90mA, Po=135mW, Co=10µF, Lo=3.9mH Dielectric strength: 500 V a.c.r.m.s.,1 min (Without /A)[Flameproof and Dust Ignition Proof Approval] Applicable Standard: EN IEC 60079-0, EN 60079-1, EN 60079-31 Certificate: KEMA 07ATEX0130X II 2 G Ex db IIC T6/T5 Gb, II 2 D Ex tb IIIC T70°C/T90°C Db Ambient Temperature for Gas Atmospheres: –40 to 75°C for T6, –40 to 80°C for T5 Ambient Temperature for Dust Atmospheres: –30 to 65°C for T70°C, –30 to 80°C for T90°C Enclosure: IP66/IP67 Electrical Connection: 1/2 NPT female and M20 female(3) Not applicable for Stainless housing.Not applicable for color change.Applicable for Electrical Connection Code 2 and 4.
