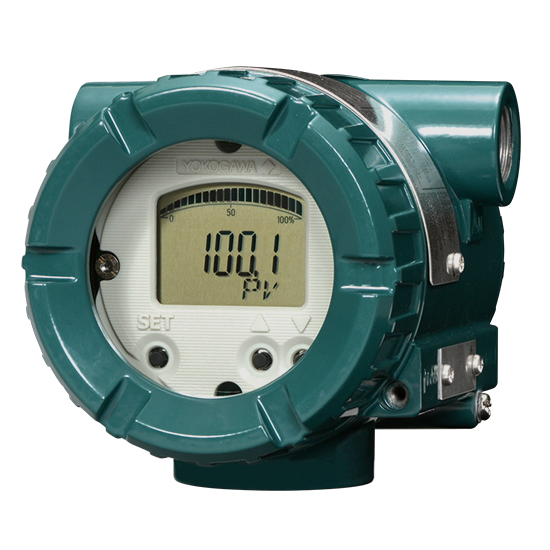

YTA610-JA1A4DD/KU2 | Yokogawa YTA610 Temperature Transmitter

Part Number: YTA610-JA1A4DD/KU2Model: YTA610 Temperature TransmitterManufacturer: YokogawaDescriptionThe YTA610 provides high accuracy, stability, and reliability. The housing structure adopts reliable dual-compartment structure. The sensor input can be choice of single or dual inputs. This input can accept the RTD, thermocouple, ohm, or DC millivolt. It converts the sensor input to a 4 to 20 mA DC analog signal or Fieldbus digital signal. HART 7 Protocol or FOUNDATION™ Fieldbus ITK 6 version are available. The dual input can accept two sensors calculation of the differential or average value and the sensor backup function. Sensor backup functions for automatically switches-over from the primary to the backup upon sensor failure.By adoption of local parameter switch on the Indicator, it becomes easy to do the on-site setting work.YTA610 features include:Dual-compartment field-mount housingChoice of HART 7, or FOUNDATION Fieldbus ITK 6 ProtocolLocal Parameter Setting function (Indicator model)Basic diagnosisOrdering InformationModel: YTA610 - Temperature TransmitterOutput Signal: J - 4 to 20 mA DC with digital communication HART 7 protocolA - Always ASensor Input: 1 - SingleHousing Code: A - AluminumElectrical Connection: 4 - M20 femaleIntegral Indicator: D - Digital indicator with Local Operating SwitchMounting Bracket: D - SUS304 stainless steel 2-inch vertical pipe mounting bracketATEX: /KU24-20 mA:[Intrinsically safe approval] Applicable Standard: EN 60079-0: 2012+A11:2013, EN 60079-11: 2012 Certificate No. FM16ATEX0019X II 1 G Ex ia IIC T5...T4 Ga Ambient Temperature: -40 to 70°C for T4, -40 to 50°C for T5 Enclosure: IP66/IP67 in accordance with only IEC 60529 Entity Parameters: Supply/Output circuit: Ui=30V, li=200mA, Pi=1.0W, Ci=22nF, Li=0mH Sensor circuit: Uo=6V, Io=90mA, Po=135mW, Co=10µF, Lo=3.9mH Dielectric strength: 500 V a.c.r.m.s, 1 min [+, -, C, 1, 2, 3, 4, 5] to Earth terminal [+, -, C] to [1, 2, 3, 4, 5][Flameproof and Dust Ignition Proof Approval] Applicable Standard: EN 60079-0:2012+A11:2013, EN 60079-1:2014, EN 60079-31:2014 Certificate: KEMA 07ATEX0130 II 2 G Ex db IIC T6/T5 Gb, II 2 D Ex tb IIIC T70°C/T90°C Db Ambient Temperature for Gas Atmospheres: -40 to 75°C for T6, -40 to 80°C for T5 Ambient Temperature for Dust Atmospheres: -30 to 65°C for T70°C, -30 to 80°C for T90°C Enclosure: IP66/IP67 Electrical Connection: 1/2 NPT female and M20 female³For flat-panel mounting, please prepare bolts and nuts.Not applicable for Fieldbus type.Applicable for Electrical Connection Code 2 and 4.
