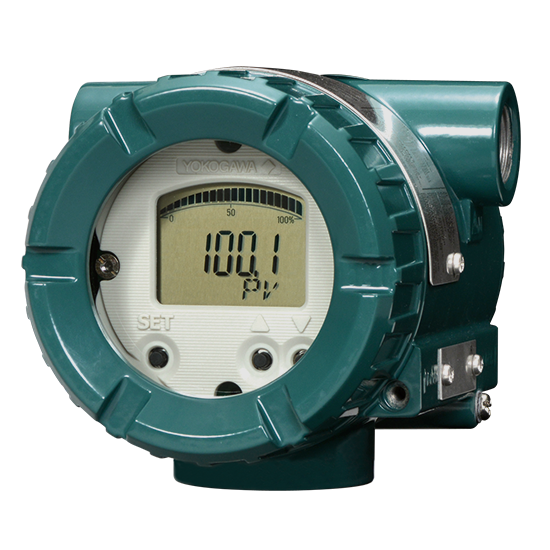

Ordering Information Model YTA610 Temperature Transmitter Output Signal -J 4 to 20 mA DC with digital communication HART protocol A Always A (Global) Sensor input 1 Single Housing code A Aluminum Electrical connection 4 M20 female Integral indicator D Digital indicator with Local Operating Switch Mounting bracket D SUS304 stainless steel 2-inch vertical pipe mounting bracket Lighting protector¹ /A Allowable current: Max. 6000A(8×20µs), repeating 1000A(8×20µs), 100 times IECEx /SU2 4-20mA:[Intrinsically safe ia, ic pproval] Applicable Standard: IEC 60079-0, IEC 60079-11 Certificate No. IECEx FMG 16.0014X Ex ia IIC T5…T4 Ga Ex ic IIC T5...T4 Gc Ex ia [ia Da] IIIC T135°C Db Ambient Temperature: –40 to +70°C for T4 (Ex ia), –40 to +50°C for T5 (Ex ia), –30 to +70°C for IIIC (Ex ia), –30 to +70°C for T4 (Ex ic), –30 to +50°C for T5 (Ex ic) Enclosure: IP66/IP67 Over voltage category: I Electrical parameters (Ex ia) Supply/Output circuit: Terminal: +, – Ui=30V, Ii=200mA, Pi=1.0W, Ci=22nF, Li=0mH Sensor circuit: Terminals: 1, 2, 3, 4, 5 Uo=6V, Io=90mA, Po=135mW, Co=10µF, Lo=3.9mH Electrical parameters (Ex ic) Supply/Output circuit: Terminal: +, – Ui=30V, Ci=22nF, Li=0mH Sensor circuit: Terminals: 1, 2, 3, 4, 5 Uo=6V, Io=90mA, Po=135mW, Co=10µF, Lo=3.9mH Dielectric strength: 500 V a.c.r.m.s.,1 min (Without /A)[Flameproof and Dust Ignition Proof Approval] Applicable standard: IEC 60079-0, IEC 60079-1, IEC 60079-31 Certificate: IECEx KEM 07.0044X Ex db IIC T6/T5 Gb, Ex tb IIIC T70°C/T90°C Db Ambient Temperature for Gas Atmospheres: –40 to 75°C (–40 to 167°F) for T6, –40 to 80°C (–40 to 176°F) for T5 Ambient Temperature for Dust Atmospheres: –30 to 65°C (–22 to 149°F) for T70°C, –30 to 80°C (–22 to 176°F) for T90°C Enclosure: IP66/IP67 Electrical Connection: 1/2 NPT female and M20 female² NAMUR NE43 compliant³ /C2 Output signal limits: 3.8 mA to 20.5 mAFailure alarm down-scale: output status at CPU failure and hardware error is –5%, 3.2 mA or less.Sensor burnout is also set to Low: –2.5%, 3.6 mA DC. Painting4,5 /P2 Color and coating change Amplifier cover only6Color: Munsell code 7.5BG4/1.5, Jade greenCoating: High anti-corrosion coating Lightning protector (surge absorber) can be remove from, or added to the equipment.Applicable for Electrical Connection Code 2 and 4.Not applicable for Fieldbus type.Not applicable for Stainless housing.The combination of X2 and P? is not possible.Except for Amplifier and terminal cover, color and coating are general specification.
