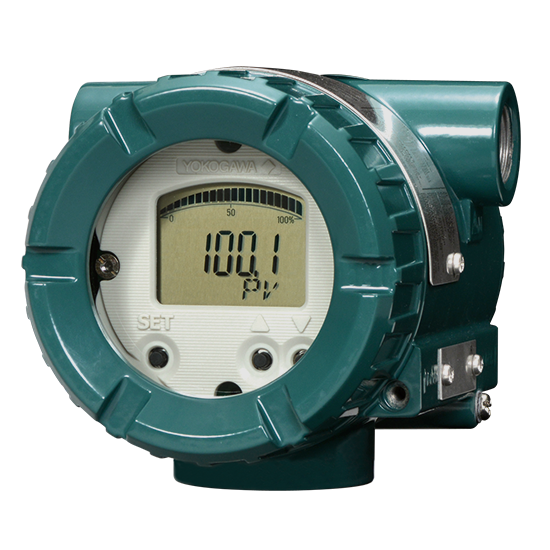

YTA610-JA1A2DN/KU2/C2 | Yokogawa YTA610 Temperature Transmitter

Part Number: YTA610-JA1A2DN/KU2/C2Model and Suffix CodesModel: YTA610 - Temperature TransmitterOutput signal: -J - 4 to 20 mA DC with DC digital communication HART 7 protocolA: Always ASensor input: 1 - SingleHousing code: A - AluminiumElectrical code: 2 - 1/2 NPT femaleIntegral indicator: D - Digital indicator with Local Operating SwitchMounting bracket: N - NoneOption Codes: KU2: ATEX4-20 mA:[Intrinsically safe approval] Applicable Standard: EN 60079-0; 2012+A11:2013, EN 60079-11:2012 Certificate No. FM16ATEX0019X II 1 G Ex ia IIC T5...T4 Ga Ambient Temperature: -40 to 70?C for T4, -40 to 50?C for T5 Enclosure: IP66/IP67 in accordance with only IEC 60529 Entity Parameters: Supply/Output circuit: Ui=30V, li=200mA, Pi=1.0W, Ci-22nF, Li=0mH Sensor circuit: Uo=6V, Io=90mA, Po=135mW, Co=10?F, Lo=3.9mH Dielectric strength: 500 V a.c.r.m.s., 1 min [+, -, C, 1, 2, 3, 4, 5] to Earth terminal [+, -, C] to [1, 2, 3, 4, 5][Flameproof and Dust Ignition Proof Approval] Applicable Standard: EN 60079-0:2012+A11:2013, EN 60079-1:2014, EN 60079-31:2014 Certificate: KEMA 07ATEX0130 II 2 G Ex db IIC T6/T5 Gb, II 2 D Ex IIIC T70?C/T90?C Db Ambient Temperature for Gas Atmospheres: -40 to 75?C for T6, -40 to 80?C for T5 Ambient Temperature for Dust Atmospheres: -30 to 65?C for T70?C, -30 to 80?C for T90?C Enclosure: IP66/IP67 Electrical Connection: 1/2 NPT female and M20 female?/C2: NAMUR NE43 compliant?Output signal limits: 3.8 mA to 20.5 mAFailure alarm down-scale: output status at CPU failure and hardware error is -5%, 3.2 mA DC.Sensor burnout is also set to Low: -2.5%,3.6 mA DC.NOTE:Applicable for Electrical Connection Code 2 and 4.Not applicable for Fieldbus type.
