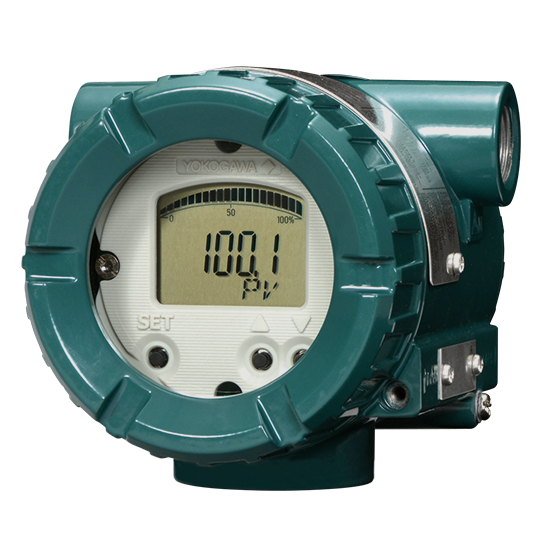

Part Number: YTA610-JA1A2DN/A/FU1Model and Suffix CodesModel: YTA610 - Temperature TransmitterOutput signal: -J - 4 to 20 mA DC with DC digital communication HART 7 protocolA: Always ASensor input: 1 - SingleHousing code: A - AluminiumElectrical code: 2 - 1/2 NPT femaleIntegral indicator: D - Digital indicator with Local Operating SwitchMounting bracket: N - NoneOption Codes: A: Lightning protectorAllowable current: Max 6000A(8x20us), repeating 1000A(8x20us), 100 timesFU1: 4-20mA:[Instrinsically safe approval/non-incendive approval] Applicable standard: Class 3600:2011, Class 3610:2015, Class 3611:2004, Class 3810:2005, ANSI/ISA-60079-0:2013, ANSI/ISA-60079-11:2014, NEMA 250:2003, ANSI/IEC 60529:2004 (R2011) Intrinsically safe for Class I, II, III Division 1, Groups A, B, C, D, E, F, G, T5...T4 Class I Zone 0 AEx ia IIC T5...T4 Non-incendive for Class I, II, Division 2, Groups A, B, C, D, F, G, T5...T4 Class III, Division 1 T5...T4 Class I Zone Group IIC T5...T4 Ambient Temperature: -40 to 70?C for T4, -40 to 50?C for T5 Enclosure Type 4X, IP66/IP67 in accordance with only IEC 60529 Entity Parameters: Intrinsically safe for Supply/Output circuit: Ui=30V, li=200mA, Pi=1.0W, Ci-22nF, Li=0mH Sensor circuit: Uo=6V, Io=90mA, Po=135mW, Co=10?F, Lo=3.9mH Non-incendive for Supply/Output circuit: Ui=30V, Ci=22nF, Li=0mH Sensor circuit: Uo=6V, Io=90mA, Po=135mW, Co=10?F, Lo=3.9mH Dielectric strength: 500 V a.c.r.m.s., 1 min [+, -, C, 1, 2, 3, 4, 5] to Earth terminal [+, -, C] to [1, 2, 3, 4, 5][Explosionproof approval] Applicable standard: Class 3600, Class 3615, Class 3810, ANSI/NEMA 250 Class I, Division 1, Groups A, B, C, D.; Class II/III, Division 1, Groups E, F and G. "FACTORY SEALD, CONDUIT SEAL NOT REQUIRED." Enclosure Ratings: TYPE 4X Temperature Class: T6 Ambient Temperature: -40 to 60?C (-40 to 140?F) Electrical Connection: 1/2NPT female?NOTE:Applicable for Electrical Connection Code 2.
