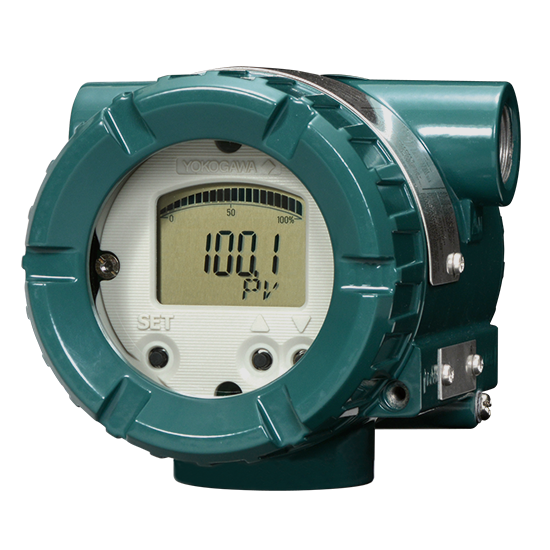

Ordering Information Model YTA610 YTA610 Temperature Transmitter Output signal J 4 to 20 mA DC with digital communication HART 7 protocol A Always A Sensor input 1 Single Housing code A Aluminum Electrical connection 2 1/2 NPT female Integral indicator D Digital indicator with Local Operating Switch Mounting bracket K SUS316 stainless steel 2-inch vertical pipe mounting bracket Wired tag plate /N4 SUS316 stainless steel tag plate wired onto transmitter FM (US) /FU1 4-20mA:[Intrinsically safe approval/non-incendive approval] Applicable standard: FM Class 3600, FM Class 3610, FM Class 3611, FM Class 3810, ANSI/UL-60079-0, ANSI/ISA-60079-11 ANSI/IEC 60529, ANSI/UL 61010-1, ANSI/UL 61010-2-30, NEMA 250, ANSI/UL 121201 Certificate No.FM16US0033X Intrinsically safe for Class I, II, III Division 1, Groups A, B, C, D, E, F, G, T5…T4 Class I Zone 0 AEx ia IIC T5…T4 Non-incendive for Class I, II, Division 2, Groups A, B, C, D, F, G, T5…T4 Class III, Division 1 T5…T4 Class I Zone 2 Group IIC T5…T4 Ambient Temperature: –40 to 70°C for T4, –40 to 50°C for T5 Enclosure Type 4X, IP66/IP67 Electrical parameters: Intrinsically safe for Supply/Output circuit: Terminals: +, – Ui=30V, Ii=200mA, Pi=1.0W, Ci=22nF, Li=0mH Sensor circuit: Terminals: 1, 2, 3, 4, 5 Uo=6V, Io=90mA, Po=135mW, Co=10µF, Lo=3.9mH Non-incendive for Supply/Output circuit: Terminals: +, – Ui=30V, Ci=22nF, Li=0mH Sensor circuit:Terminals: 1, 2, 3, 4, 5 Uo=6V, Io=90mA, Po=135mW, Co=10µF, Lo=3.9mH Dielectric strength: 500 V a.c.r.m.s.,1 min (Without /A)[Explosionproof approval] Applicable standard: FM Class 3600, FM Class 3615, FM Class 3810, NEMA250 Certificate No.FM18US0002 Class I, Division 1, Groups A, B, C and D.; Class II/III, Division 1, Groups E, F and G. "FACTORY SEALD, CONDUIT SEAL NOT REQUIRED." Enclosure Ratings: TYPE 4X Temperature Class: T6 Ambient Temperature: –40 to 60°C (–40 to 140°F) Electrical Connection: 1/2NPT female¹ Applicable for Electrical Connection Code 2.
