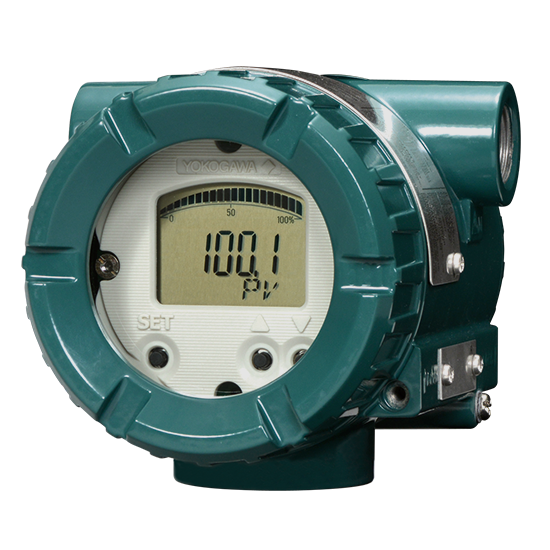

YTA610-JA1A2DB/A/X2/NS2 | Yokogawa YTA610 Temperature Transmitter

Model and Suffix Codes Model YTA610 YTA610 Temperature Transmitter Output signal -J 4 to 20 mA DC with digital communication HART 7 protocol A Always A Sensor input 1 Single Housing code A Aluminum Electrical connection 2 1/2 NPT female Integral indicator D Digital indicator with Local Operating Switch Mounting bracket B SUS304 stainless steel 2-inch horizontal pipe mounting Lighting protector /A Allowable current: Max. 6000A (8x20µs), repeating 1000A(8x20µs), 100 times Painting(1) /X2 Coating change(2)High anti-corrosion coating NEPSI(3) /NS2 4-20mA:[Intrinsically safe approval ] Applicable Standard: GB3836.1-2010, GB3836.4-2010, GB3836.20-2010, GB3836.19-2010, GB12476.1-2013, GB12476.4-2010 Certificate No.: GYJ21.1262X Ex ia IIC T4/T5 Ga Ex ic IIC T4/T5 Gc Ex iaD [iaD 20] 21 IP6X T135°C Ambient Temperature: –40 to 70°C for T4, –40 to 50°C for T5(Ex ia) –30 to 70°C(Ex iaD) –30 to 70°C for T4, –30 to 50°C for T5(Ex ic) Enclosure: IP66/IP67 Overvoltage category: I Electrical parameters (Ex ia): Supply/Output circuit: Terminals: +, - Ui = 30 V, Ii = 200 mA, Pi = 1.0 W, Ci = 22 nF, Li = 0 mH Sensor circuit: Terminals: 1, 2, 3, 4, 5 Uo = 6 V, Io = 90 mA, Po = 135 mW, Co = 10 µF, Lo = 3.9 mH Electrial parameters (Ex ic): Supply/Output circuit: Terminals: +, - Ui = 30 V, Ci = 22 nF, Li = 0 mH Sensor circuit: Terminals: 1, 2, 3, 4, 5 Uo = 6 V, Io = 90 mA, Po = 135 mW, Co = 10 µF, Lo = 3.9 mH Dielectric strength: 500 V a.c.r.m.s., 1 min (Without /A) Not applicable for Stainless housing.Not applicable for color change.Not applicable for Marine Certificate.
