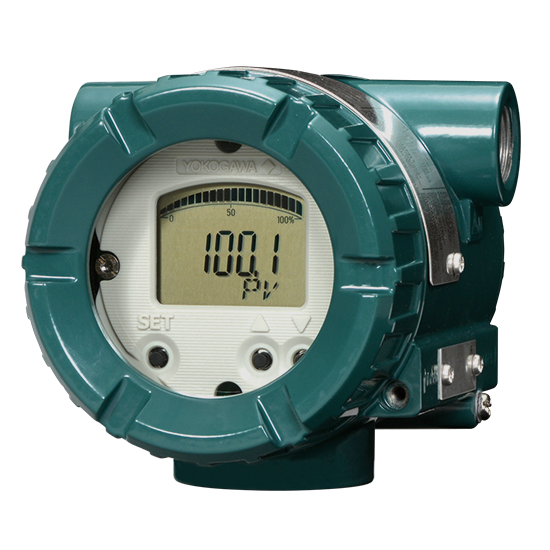

YTA610-FA1C4DK/N4/KU25 | Yokogawa YTA610 Temperature Transmitter

Ordering Information Model YTA610 YTA610 Temperature Transmitter Output signal F Digital communication (FOUNDATION Fieldbus protocol) A Always A Sensor input 1 Single Housing code C Stainless Electrical connection 4 M20 female Integral indicator D Digital indicator with Local Operating Switch Mounting bracket K SUS316 stainless steel 2-inch vertical pipe mounting bracket Wired tag plate /N4 SUS316 stainless steel tag plate wired onto transmitter ATEX /KU25 Fieldbus:[Intrinsically safe approval] Applicable Standard: EN 60079-0: 2012+A11:2013, EN 60079-11: 2012 Certificate No. FM16ATEX0019X II 1 G Ex ia IIC T4 Ga Ambient Temperature: –55 to +60°C Enclosure: IP66/IP67 in accordance with only IEC 60529 FISCO field device Entity Parameters: Supply/Output circuit: Ui=30V, Ii=300mA, Pi=1.2W, Ci=2.2nF, Li=0mH Sensor circuit: Uo=6V, Io=90mA, Po=135mW, Co=10µF, Lo=3.9mH Dielectric strength: 500 V a.c.r.m.s., 1 min [+, -, 1, 2, 3, 4, 5] to Earth terminal [+, -] to [1, 2, 3, 4, 5][Flameproof and Dust Ignition Proof Approval] Same as KU2 Applicable for Electrical Connection Code 2 and 4.
