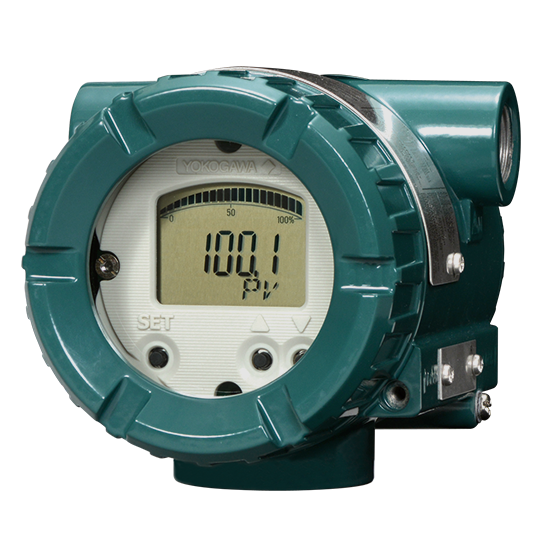

YTA610-FA1A4DN/NS25/A | Yokogawa YTA610 Temperature Transmitter

Model and Suffix Codes Model YTA610 YTA610 Temperature Transmitter Output signal -F Digital communication (FOUNDATION Fieldbus protocol) A Always A Sensor input 1 Single Housing code A Aluminum Electrical connection 4 M20 female Integral indicator D Digital indicator with Local Operating Switch Mounting bracket N None NEPSI /NS25 Fieldbus:[Intrinsically safe approval] Applicable Standard: GB 3836. 1-2010, GB 3836.4-2010, GB 3836.20-2010 Certificate No. GYJ16.1423X Ex ia IIC T4 Ga Ambient Temperature: -55 to 60°C for T4 Enclosure: IP66/IP67 in accordance with only IEC 60529 FISCO field device Entity Parameters: Supply/Output circuit: Ui=30V, li=300mA, Pi=1.2W, Ci-2.2nF, Li=0mH Sensor circuit: Uo=6V, Io=90mA, Po=135mW, Co=10µF, Lo=3.9mH Dielectric strength: 500 V a.c.r.m.s., 1 min [+, -, 1, 2, 3, 4, 5] to Earth terminal [+, -] to [1, 2, 3, 4, 5] Lighting protector /A Allowable current: Max. 6000A (8x20µs), repeating 1000A(8x20µs), 100 times
