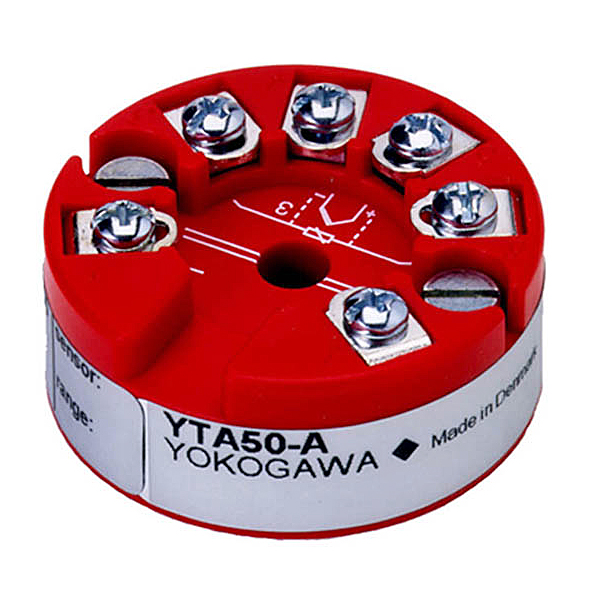

YTA50-A/DS2 | Yokogawa YTA50 Temperature Transmitter

Part Number: YTA50-A/DS2Model: YTA50 Temperature TransmitterBrand: YokogawaThe YTA50 is a head mount temperature transmitter with a single input. The single input accepts thermocouples, RTD, Ohms or a DC millivolt source. All inputs are linearized and converted in to an industrial standard 4 to 20 mA DC output for transmission to your system. YTA50 is the choice for your monitoring applications.YTA50 features include:4 to 20 mA DC analog output16 Input TypesHead Mount or DIN Rail MountOrdering InformationModel: YTA50 - Temperature Transmitter (Head Mount Type)Output Signal: -A - 4 to 20 mA DCOptional Specifications: /DS2FM intrinsically safe/Nonincendive and ATEX intrinsically safe approval combination(For ATEX Intrinsically safe approval, see /KS2)[FM Intrinsically safe/Nonincendive approval] Applicable standard: FM 3600, FM 3610, FM 3611, FM 3810 Intrinsically safe for Class I, Division 1, Group A, B, C, and D Supply: Vmax=28V, Imax=120mA, Pmax=0.84W,Ci«1nF, Li«10µH Amb. temp.: T6 Ta=55°C, T4 Ta=80°C
