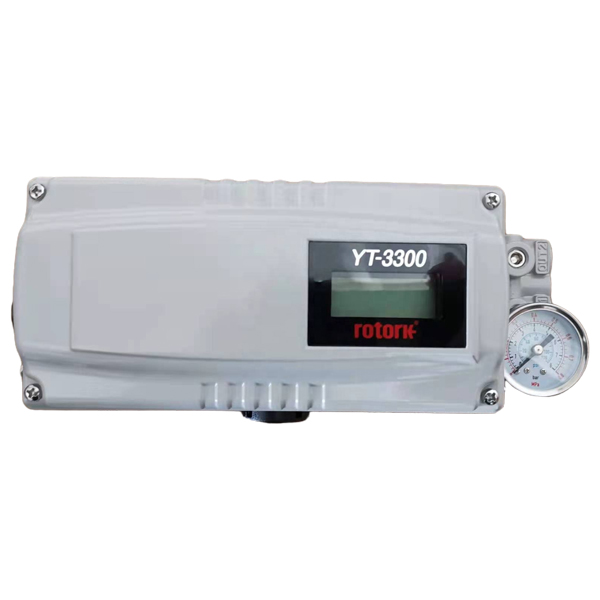

YT3300-LDN1221S | YTC YT-3300 Smart Positioner

Ordering Information Model YT-3300 YT-3300 Series Motion Type L Linear (Positioner is attached the right yoke of actuator) Acting Type D Double Explosion Proof N Non-Explosion Lever Type 1 20 ~ 100 mm (Standard type) Conduit - Air Connection Type 2 G 1/2 - 1/4 NPT (YT-3350 is available for No. 2 ONLY) Communication 2 + HART Communication Option 1 + Position Transmitter Operating Temp. (Non-explosion proof)(1) S -30 ~ 85°C (-22 ~ 185°F, except EAC explosion proof) This option is just the normal operating temperature of the product and is not related to explosion proof temperature. See "2.6 Certificates" for explosion proof temperature.
