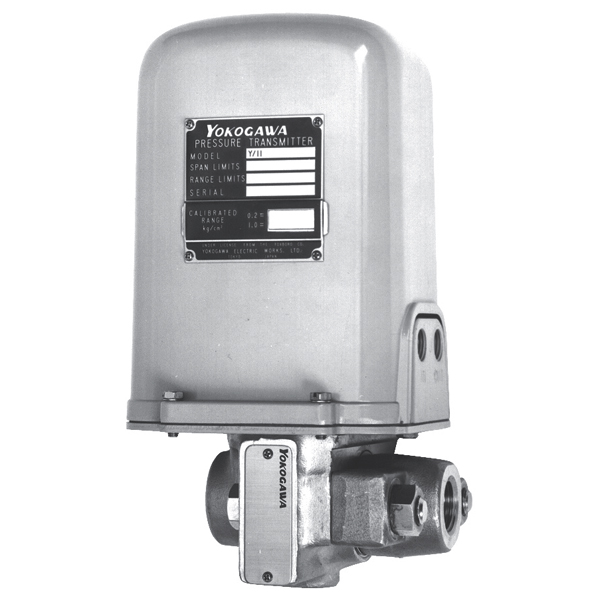

Y/11GM-DS3/L/CAL-E/TP-S | Yokogawa Pneumatic Gauge Pressure Transmitter

Part Number: Y/11GM-DS3/L/CAL-E/TP-SModel: Pneumatic Gauge Pressure TransmitterManufacturer: YokogawaStandard SpecificationsSpan Limits: Span is continuously adjustable within range limits.Range Limits*: *when lower range-value is other than zero, optional kit for elevated-zero or suppressed-zero ranges is installed.Accuracy (includes linearity, hysteresis and repeatability): ±0.5% of span.Repeatability: 0.1% of span.Dead Band: 0.05% of span.Air Supply Pressure: 140 kPa, 1.4 kgf/cm2 or bar, or 20 psi.Air Consumption: 0.5 m3/h at 0°C, 101.3 kPa {1.033 kgf/cm2} absolute (0.3 scfm).
