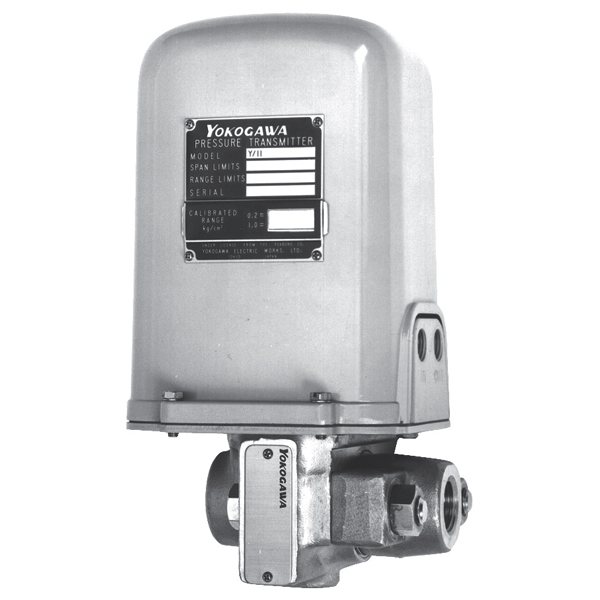

Y/11GM-BS2/GAS-FM/CAL-M | Yokogawa Pneumatic Gauge Pressure Transmitter

Part Number: Y/11GM-BS2/GAS-FM/CAL-MModel: Pneumatic Gauge Pressure TransmitterManufacturer: YokogawaModel and Suffix CodesModel: Y/11GM - Pneumatic gauge pressure transmitterBellows Capsule: -B - B capsule. Span: 0.14 to 1.4 MPaBody Material¹: S - Forged JIS SUS 316 stainless steelProcess Connection: 2 - JIS Rc1/2 female.Options: /GM-FMAir Connection: JIS Rc 1/4 femaleGauge Scale: 0 to 2 kgf/cm²Calibration Units: /CAL-M - M-calibration (Unit kgf/cm²)NOTE:Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user's process fluids.Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150 ?C [302 ?F] or above).
