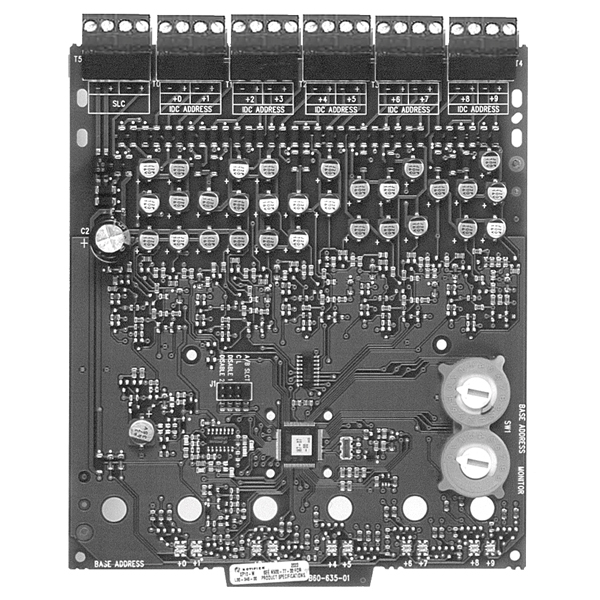

XP10-M | NOTIFIER by Honeywell Ten-Input Monitor Module

GeneralThe XP10-M ten-input monitor module is an interface between a control panel and normally open contact devices in intelligent alarm systems such as pull stations, security contacts, or flow switches.The first address on the XP10-M is set from 01 to 150 and the remaining modules are automatically assigned to the next nine higher addresses. Provisions are included for disabling a maximum of two unused addresses.The supervised state (normal, open, or short) of the monitored device is sent back to the panel. A common SLC input is used for all modules, and the initiating device loops share a common supervisory supply and ground — otherwise each monitor operates independently from the others.Each XP10-M module has panel-controlled green LED indicators. The panel can cause the LEDs to blink, latch on, or latch off.FeaturesListed to UL Standard 864, 9th edition.Ten addressable Class B or five addressable Class A initiating device circuits.Removable 12 AWG (3.31 mm²) to 18 AWG (0.821 mm²) plug-in terminal blocks.Status indicators for each point.Unused addresses may be disabled.Rotary address switches.Class A or Class B operation.FlashScan® or CLIP operation.Flexible mounting options.Mounting hardware included.
