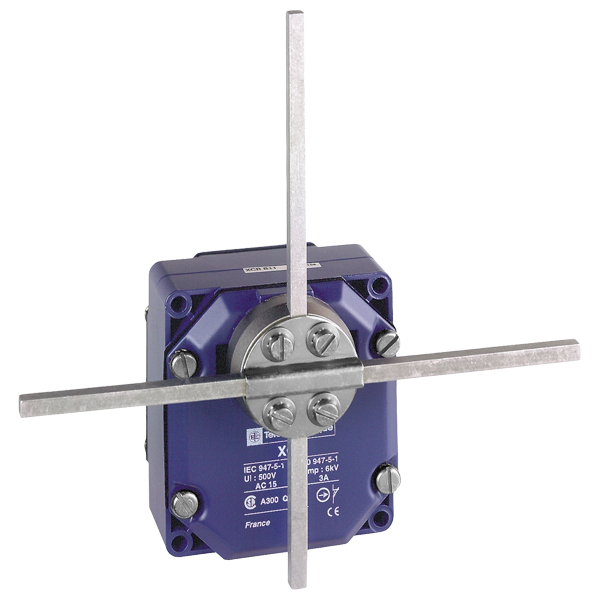

XCRE18 | Schneider Electric Limit Switch

Main Characteristics Range of product OsiSense XC Series name Special format Product or component type Limit switch Product specific application For hoisting and mechanical handling applications Device short name XCR Body type Fixed Head type Rotary head Material Metal Fixing mode By the body Movement of operating head Rotary Type of operator Stay put crossed rods lever metal square rod 6 mm Type of approach Lateral approach, 2 directions Electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² Number of poles 4 Contacts type and composition 2 x (1 NC + 1 NO) Contact operation Snap action Contact block per direction[control circuit] 2 per direction Positive opening With
