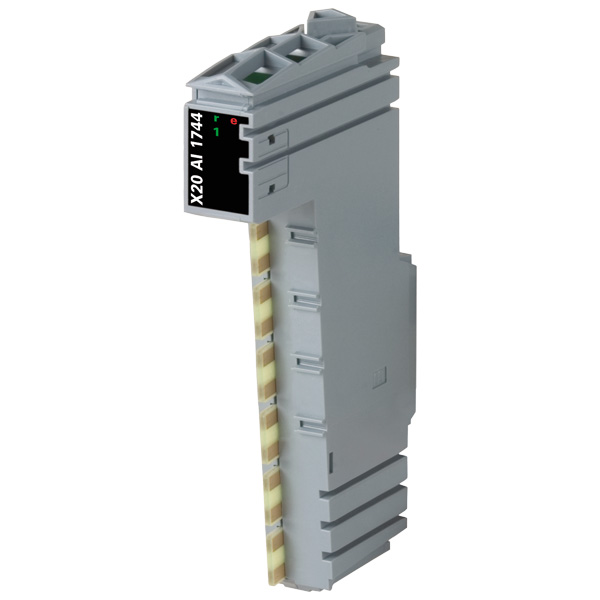

X20AI1744 | B&R X20 Analog Input Module

Description:1 full-bridge strain gauge inputData output rate configurable from 0.1 Hz to 7.5 kHzSpecial operating modes (synchronous mode and multiple sampling)Configurable filter levelThis module works with both 4-wire and 6-wire strain gauge load cells. The concept applied by the module requires compensation in the measurement system. This compensation eliminates the absolute uncertainty in the measurement circuit, such as component tolerances, effective bridge voltage or zero point offset. The measurement precision refers to the absolute (compensated) value, which will only change as a result of changes in the operating temperature.
