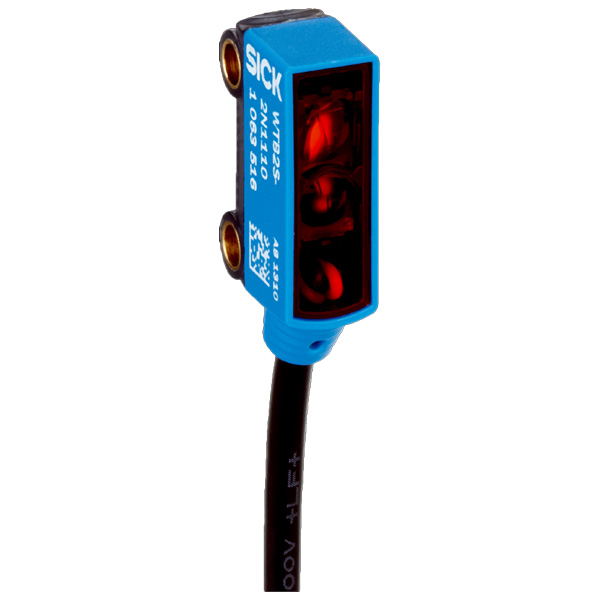

WTB2S-2P3160 | SICK Miniature Photoelectric Sensors

Features: Functional principle Photoelectric proximity sensor Functional principle detail Background suppression Dimensions (W x H x D) 7.7 mm x 21.8 mm x 13.5 mm Housing design (light emission) Rectangular Sensing range max. 1 mm ... 66 mm¹ Sensing range5 mm ... 60 mm¹ Background suppression typ. from 70 mm Type of light Visible red light Light source PinPoint LED² Light spot size (distance) Ø 4.5 mm (40 mm) Wave length 640 nm Adjustment None Special applications Detecting small objects Object with 90% remission (based on standard white, DIN 5033).Average service life: 100,000 h at TU = +25 °C.
