Промышленное оборудование

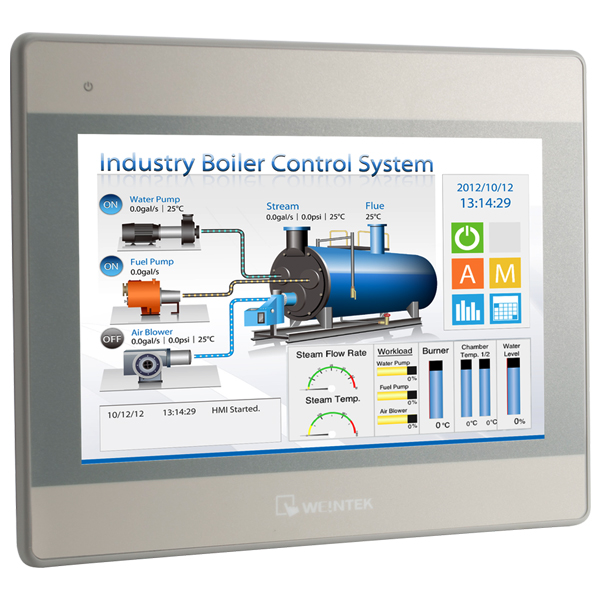

Weintek MT8101iE Human Machine Interface

Артикул: QT-35356

от 254 602 ₸

В наличии: 1

Предложения складов

Склад	Цена	В тенге	Остаток	Доставка
склад-3	537,60 USD	254 602 ₸	1	30–45 дней

Характеристики

Estimated Lead Time	Usually Ships in 1 - 5 Working Days
ID каталога	39113
Part Number	MT8101iESpecificationDisplayDisplay: 10.1" TFTResolution: 800 x 480Brightness (cd/m²): 350Contrast Ratio: 500:1Backlight Life Time: >50,000 hrs.Colors: 262KLCD Viewing Angle (T/B/L/R): 60/60/70/70Touch PanelType: 4-wires Resistive typeAccuracy: Active Area Length(X)±2%, Width(Y)±2%MemoryFlash: 128 MBRAM: 128 MBProcessor32-bit RISC Cortex-A8 600MHzI/O PortUSB Host: USB 2.0 x 1Ethernet: 10/100 Base-T x 1COM 2: RS-485 2W/4WCOM 3: RS-485 2WRTCBuilt-inPowerInput Power: 24±20 VDCPower Isolation: Built
Shipping Weight	4 Kg
Артикул	MT8101iE

Описание

Part Number: MT8101iESpecificationDisplayDisplay: 10.1" TFTResolution: 800 x 480Brightness (cd/m²): 350Contrast Ratio: 500:1Backlight Life Time: >50,000 hrs.Colors: 262KLCD Viewing Angle (T/B/L/R): 60/60/70/70Touch PanelType: 4-wires Resistive typeAccuracy: Active Area Length(X)±2%, Width(Y)±2%MemoryFlash: 128 MBRAM: 128 MBProcessor32-bit RISC Cortex-A8 600MHzI/O PortUSB Host: USB 2.0 x 1Ethernet: 10/100 Base-T x 1COM 2: RS-485 2W/4WCOM 3: RS-485 2WRTCBuilt-inPowerInput Power: 24±20 VDCPower Isolation: Built-inPower Consumption: 400 mA @ 24 VDCVoltage Resistance: 500VAC (1 min.)Vibration Endurance: 10 to 25Hz (X, Y, Z direction 2G 30 minutes)SpecificationPCB Coating: YesEnclosure: PlasticDimensions WxHxD: 271 x 213 x 40 mmPanel Cutout: 260 x 202 mmMount: Panel mountEnvironmentProtection Structure: NEMA4 / IP65 Compliant Front PanelStorage Temperature: -20° ~ 60°C (-4° ~ 140°F)Operating Temperature: -0° ~ 50°C (32° ~ 122°F)Relative Humidity: 10% ~ 90% (non-condensing)CertificateCE: CE markedSoftwareEasyBuilder Pro
