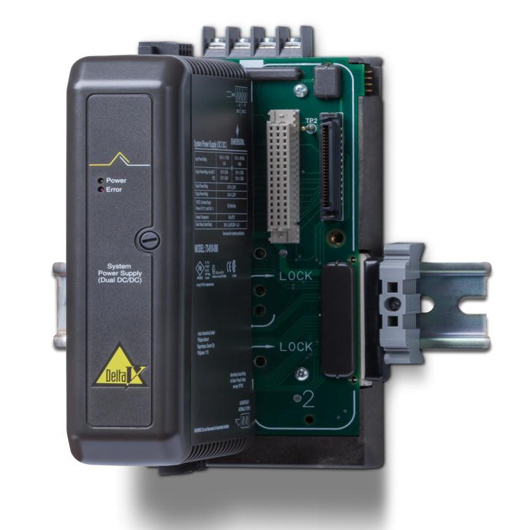

VE5009 | DeltaV™ M-series DC to DC System Power Supply

Product DescriptionThe DeltaV™ power supply suite provides power to the system electronics and to the field. DeltaV system power supplies offer you the most efficient and reliable power solution for your money. This is all the power required for your DeltaV system.SpecificationsInput: 12 VDC (-4-5%) at 14.8 A, 24 VDC ±20% at 6.1AInrush (soft start): 12 A peak maximum for 5 ms over 12 VDC input range (excluding 12 VDC output), 20 A peak maximum for 5 ms over 24 VDC input range (including 12 VDC output)Output power rating ('-40 to 60 °C): +12 VDC at 13 A (12 VDC Input), '+12 VDC at 8.0 A (24 VDC Input), '+5 VDC at 2.0 A, '+3.3 VDC at 2.0 A, (10 W total for combined outputs of '+5 VDC and '+3.3 VDC)Output Power Rating (60 to 70 C): +12 VDC at 10 A (12 VDC Input), +12 VDC at 6.0 A (24 VDC Input), +5 VDC at 2.0 A, +3.3 VDC at 2.0 A, BM26(10 W total for combined outputs of +5 VDC and +3.3 VDC)Input protection: Internally fused, non-replaceableOvervoltage protection: Output protected at 110% to 120%Hold-up time: Output: remains within 5% of nominal at full load and minimum input voltage for 5 ms (excluding 12 VDC current with 12 VDC input)FeaturesPlug and play componentsRail mountedInternal power busModular powerAccurate outputPower redundancyFault detectionSystem and field power isolation
