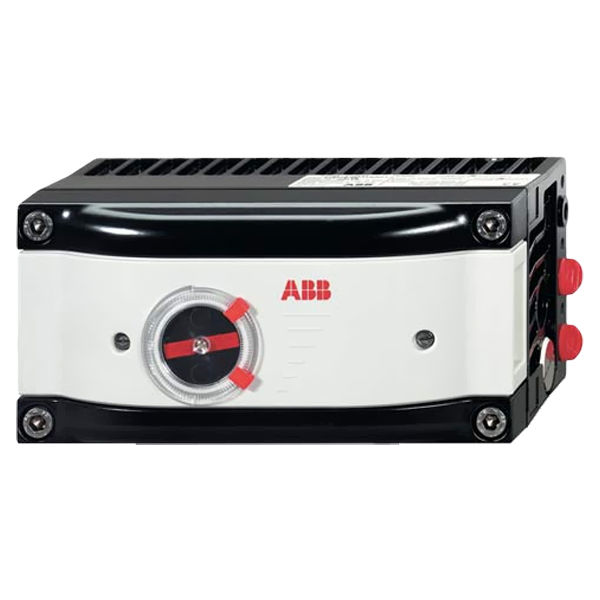

V18348-201131431P2M5 | ABB TZIDC-200 Digital Positioner V18348

Ordering Information Model V18348 TZIDC-200 Electro-Pneumatic Positioner, with flameproof enclosure, intelligent, software-configurable with Local Communication Interface (LKS) and HART communication Case / Mounting 2 0 Case made of aluminium, varnished, protection IP 65 / NEMA 4XFor mounting to linear actuators acc. to DIN/IEC 534 / NAMUR or to rotary actuators acc. to VDI/VDE 3845As above, but with mechanical position indicator Operation 1 With operator panel and display integrated in the enclosure cover Explosion Protection 1 ATEX Ex II 2 G EEx d IIC T4, T5, T6 Output / Safe Position (in case of an electrical power failure) 3 Double acting, fail safe Connections 1 Cable: Thread M20 x 1.5Air pipe: Thread G 1/4 Option Modules for Analog or Digital Position Feedback 4 Plug-in module for feedback, sign. range 4...20 mA, two-wire and digital position feedback Optional Mechanical Kit for Digital Position Feedback 3 Mechanical kit for digital position feedback with 24V DC/AC microswitches (change-over contacts)¹ Parameter Setting / Bus Address 1 Factory setting for HART devices P2 M5 only for Ex d version
