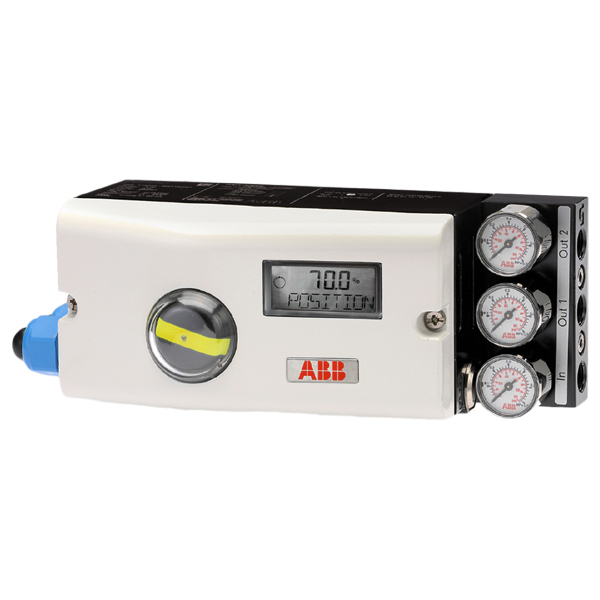

Model and Suffix Codes Model V18345 TZIDC Electro-Pneumatic Positioner, intelligent, configurable, with indicator and operator panel Case/Mounting 2 0 Case made of aluminium, varnished,protection IP 65 (NEMA 4X) for mounting to linear actuators acc. to DIN/IEC 534 / NAMUR or to rotary actuators acc. to VDI/VDE 3845 as above, but with mechanical position indicator for mounting to rotary actuators acc. to VDI/VDE 3845 Input / Communication Port 2 Input 4 ... 20 mA, two-wire, with connector plug for LKS adapter and FSK module for HART communication Explosion Protection 1 ATEX II 2 G Ex ib IIC T6 resp. T4 Gb Output / Safe Position (in case of an electrical power failure) 1 Single acting, fail safe Connections 5 Cable: Thread M20 x 1.5 Air pipe: Thread 1/4-18 NPT Option Modules for Analog or Digital Position Feedback 5 Plug-in module analog position feedback (sign. range 4 … 20 mA) and digital position feedback Optional Mechanical Kit for Digital Position Feedback 00 Without Option Modules for Analog or Digital Position Feedback 1 Plug-in module for analog position feedback, signal range 4 ... 20 mA, two-wire M5
