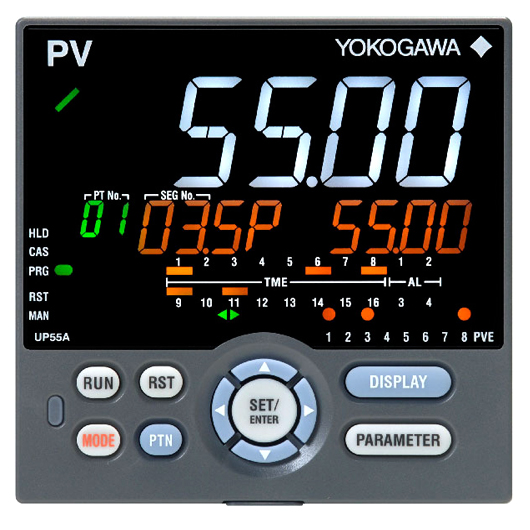

UP55A-142-11-00/DR | Yokogawa UP55A Program Controller

Ordering Information Model UP55A Program Controller (Power supply: 100-240 V AC)30 program patterns / 300 program segments (99 program patterns / 600 program segments when the option /AP is specifed. Max. 99 segments per pattern) (provided with retransmission output or 15 V DC loop power supply, 8 DIs, and 8 DOs) Type 1: Basic control -1 Position proportional type Type 2: Functions 4 3 additional aux. analog inputs, 2 DIs and 5 DOs to be deleted Type 3: Open networks 2 Ethernet communication (with serial gateway function) Display language(1) -1 English (Default. Can be switched to other language by the setting.) Case color 1 Black (Light charcoal gray) Fixed code -00 Always “-00” Optional suffix codes /DR Additional direct input (TC and 3-wire/4-wire RTD) and current input to Remote (1 additional aux. analog) input, 1 DI to be deleted(2) English, German, French, and Spanish are available for the guide display.The /DR option can be specified only when the Type 2 code is “1” or “4.”
