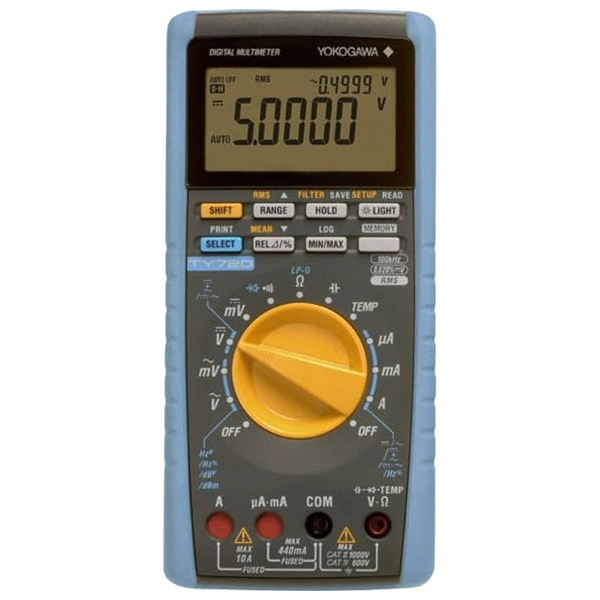

Features Measurement Function DC voltage, AC voltage, DCV+ACV, DC current, AC current, DCA+ACA, resistance, frequency, temperature, capacitance, duty cycle, decibel calculation, continuity check, diode test, low-power resistanceFor AC voltage/current, RMS/MEAN detection can be switched.For AC voltage/current, the low-pass filter can be turned on/off. Additional Functions Data hold/auto hold/peak hold, range hold, maximum/minimum/average values resistance, capacitance zero, relative and percentage value calculation, manual-mode memory, logging-mode memory, auto power off, backlight (white LED) Display 5-digit LCD: 7-segmentDigital display: Main display; [50,000] countsSub-display; [50,000] countsBar graph display: 51-segmentPolarity indicator: “-” appears automatically when the polarity is negativeOverrange indicator: “OL” Features - Highest Precision- Basic accuracy 0.020%- True RMS measurement- New Functions for Electronic and Industrial Use- Simultaneous measurement and display of DC and AC- Switchable RMS/MEAN detection- Low-pass Filter (LPF)- AC50mV range- Lo-Power resistance measurement TY720 only- Full Support for Data Management- A large-capacity logging-mode memoryTY720: 10,000 dataTY710: 1,000 data- USB communication, application software (Optional DMM communication package)- Safe Design and Wide Temperature Range for Harsh Use- Conforms to safety standards EN61010-1 1000V CAT., 600V CAT.- Safety shutters for preventing erroneous insertion of test leads into current measurement terminals- Operating temperature range -20 to +55C- Storage temperature range -40 to +70- Closed Case Calibration
