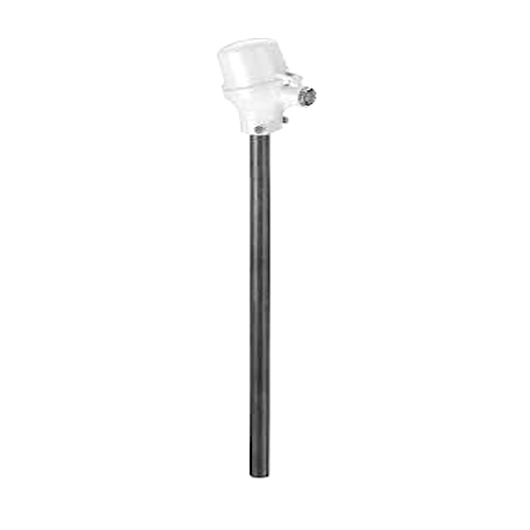

TSH210 - Straight Thermocouple SensyTemp TSH210Explosion Protection/Approvals: Y0 - WithoutThermocouple Design: A2 - With metal thermowell and ceramic inner tube (Form AMK acc. no EN 50446)Material Thermowell / Inner Tube: H11 - 1.4749 (466) / Ceramic C610Thermowell Diameter: M2 - 22 x 2 mm (0.87 x 0.08 in.)Nominal Length: N4 - N = 1000 mm (39.37 in.)Process Connection: A13 - Adjustable threaded fitting G 1 A, carbon steelThermocouple Type / Diameter: K1 - 1 x Type K - wire diameter 2.5 mm (0.10
Shipping Weight
9 Kg
Артикул
TSH210-Y0A2H11M2N4A13K1T1A6Y1C4C6M5
Описание
Product Number: TSH210-Y0A2H11M2N4A13K1T1A6Y1C4C6M5Ordering InformationModel: TSH210 - Straight Thermocouple SensyTemp TSH210Explosion Protection/Approvals: Y0 - WithoutThermocouple Design: A2 - With metal thermowell and ceramic inner tube (Form AMK acc. no EN 50446)Material Thermowell / Inner Tube: H11 - 1.4749 (466) / Ceramic C610Thermowell Diameter: M2 - 22 x 2 mm (0.87 x 0.08 in.)Nominal Length: N4 - N = 1000 mm (39.37 in.)Process Connection: A13 - Adjustable threaded fitting G 1 A, carbon steelThermocouple Type / Diameter: K1 - 1 x Type K - wire diameter 2.5 mm (0.10 in.)Sensor Accuracy: T1 - Extended accuracy (EN 60584 / IEC 584)Connection Head Type / Material: A6 - A / AluminiumTransmitter: Y1 - Without transmitter, measuring inset with ceramic terminal blockCertificates:C4 - Declaration of compliance with the order 2.1 acc. to EN 10204C6 - Inspection certificate 3.1 acc. to EN 10204 for visual, dimensional and functional testDocumentation Language: M5 - English
