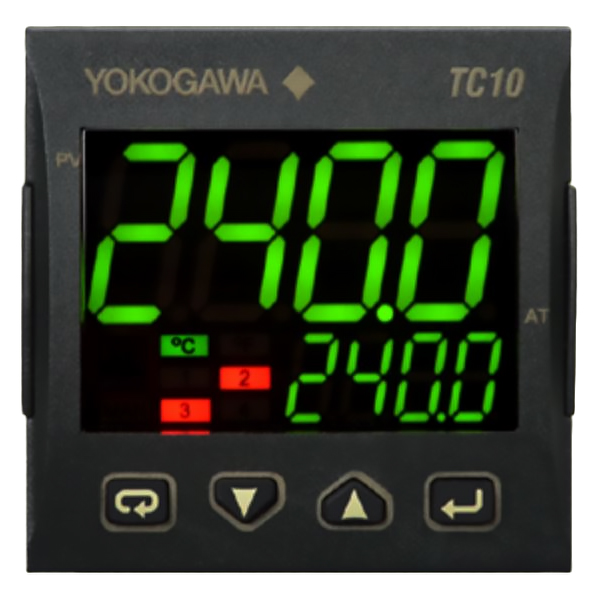

TC10-NHCVRRDNF/GK | Yokogawa TC10 Temperature Controller

Features3 Dynamic Colors Led DisplayCompact size: 48 x 48 mm (1/16 DIN), depth 48 mm + 14 mm (terminals)Universal Input: (TC, mV, V, mA, Pt100-Pt1000)3 configurable alarms as absolute, deviation and band4 selectable Set PointSerial Communication (optional): RS-485 ModbusPID control with single or double action with overshoot control, ON/OFF, ON/OFF Neutral Zone, Auto-tuning, Self-tuningStandby mode of display (selectable)User calibration for sensor position compensationModel and Suffix Code Model TC10 Temperature Controller with an universal input, one logic input, and one selectable I/O Fixed Code -N Always "-N" Power supply H 100 to 240 VAC Fixed code C Always "C" OUT1-3 VRR DCV output for SSR with two alarm relays, or DCV and Relay output for Heat/Cool control with one alarm IN/OUT4(Fixed code) D Selectable I/O (logic input / 12V SSR drive output / 12VDC 20mA transmitter power supply) Serial communication N None Fixed code F Always "F" Option code /GK Panel gasket for IP65 /EX option and /RS option cannot be specified at the same time (model UT150 only)/EX option includes contact input 1 (for switching between the SP1 and SP2 target setpoints using external contacts) and contact input 2 (for enabling the timer).
