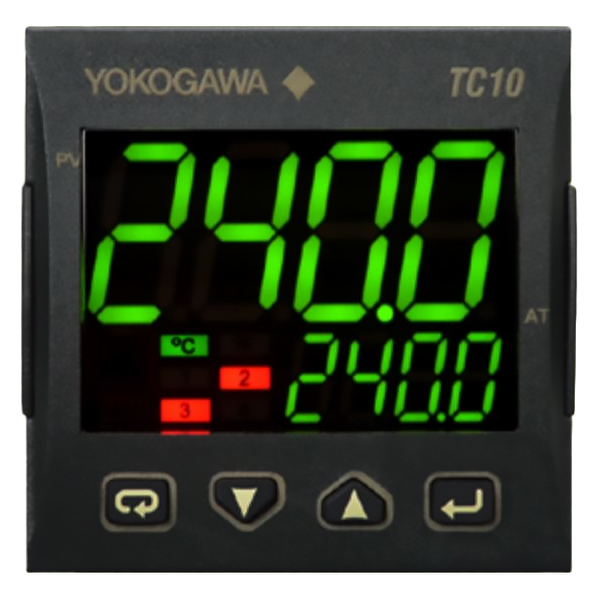

TC10-NHCARRDNF/GK | Yokogawa Temperature Controller

Part Number: TC10-NHCARRDNF/GKModel: Temperature ControllerManufacturer: YokogawaFeatures3 Dynamic Colors Led DisplayCompact size: 48 x 48 mm (1/16 DIN), depth 48 mm + 14 mm (terminals)Universal Input: (TC, mV, V, mA, Pt100-Pt1000)3 configurable alarms as absolute, deviation and band4 selectable Set PointSerial Communication (optional): RS-485 ModbusPID control with single or double action with overshoot control, ON/OFF, ON/OFF Neutral Zone, Auto-tuning, Self-tuningStandby mode of display (selectable)User calibration for sensor position compensationOrdering InformationModel: TC10 - Temperature Controller with an universal input, one logic input, and one selectable I/OFixed code: -N - Always "-N"Power supply: H - 100 to 240 VACFixed code: C - Always "C"OUT1-3: ARR - Analog output with two alarm relays, or Analog output and Relay output for Heat/Cool control with one alarmIN/OUT4(Fixed code): D - Selectable I/O (logic input / 12V SSR drive output / 12VDC 20mA transmitter power supply)Serial communication: N - NoneFixed code: F - Always "F"Option code: /GK - Panel gasket for IP65
