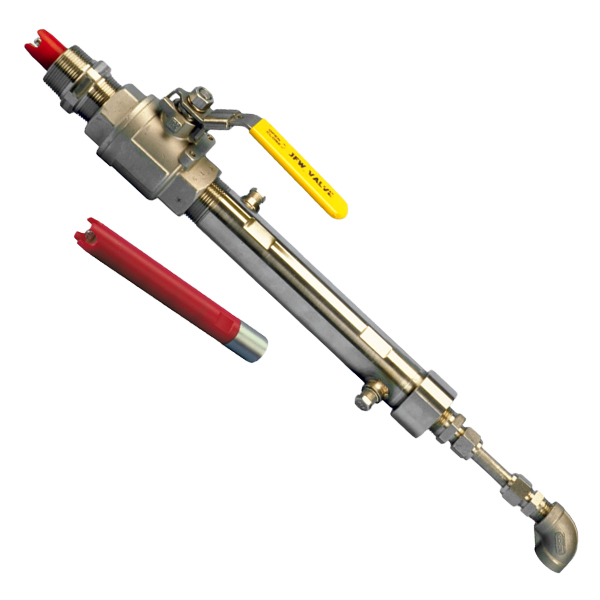

TB564J1609T150 | ABB TB564 High Pressure Hot-tap pH / Redox (ORP) Sensor Assembly

Ordering Information Model TB564 Standard solid-state sensors – no solution ground rod Next Step high pressure hot-tap pH / Redox (ORP)(1) sensor assembly (2065 kPa [300psi] at 140 °C [284°F]) Measuring electrode J Coat-resistant glass / high temperature (5 to 140 °C, 0 to 14 pH) Integral temperature compensator 1 3 kO Tinned leads(2) Reference junction 6 PTFE, notched Body style 0 Standard, Kynar sensor body Accessory hardware 9 Model TB(X)564 sensor assembly, with ball valve and coupling Units of measure, integral sensor cable(3) T Tinned / Pin leads, feet (recommended)(1) 150 For direct connection to type TB82, APA592, TB84, 4630 / 35 and AX46 transmitters or other supplier devices using terminal blocks.Not available for Redox (ORP) electrodes (codes 5 & A).There are two options to connect to a transmitter using terminal blocks:Option 1 – use BNC / TC to PIN adapter with conduit fitting or BNC / TC to PIN adapter. In either case temperature compensator code must be 2 or 4.Option 2 – select T in sensor cable code, not designed for use with extension cables or junction box.
