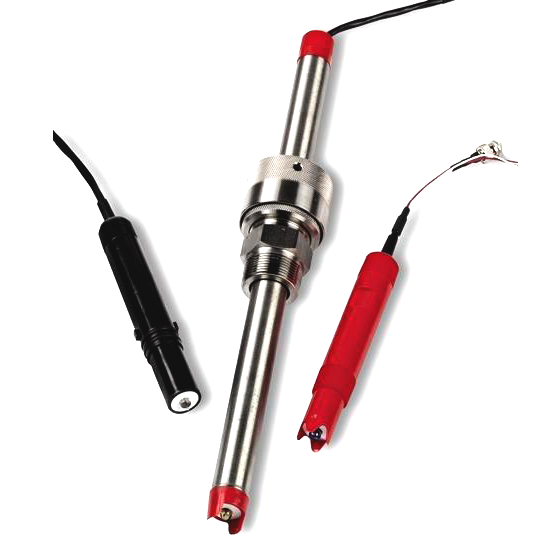

TB557325B30JB | ABB TB557 pH/Redox (ORP) Hot-Tap Retractable Sensor

Part Number: TB557325B30JBModel: TB557 pH/Redox (ORP) Hot-Tap Retractable SensorManufacturer: ABBDescriptionNext Step Solid State referenceAdvantage Series with solution ground rodComprehensive selection of measuring electrodesCombination style constructionInsertion, submersion, flow-through and hot-tapIntegral potted cableComprehensive selection of wetted materialsOperating temperatures up to 140 C (284 F)Operating pressures up to 21 bar (300 psi) and higherOrdering InformationModel: TB557Integral Temperature Compensator: 3 - Pt100 Tinned leads¹ ²Solution Ground Rod Material: 2 - TitaniumO-Ring Material: 5 Body Style: B - 16 in. 316 Stainless Steel sheathAccessory Hardware³: 3 - 316 Stainless Steel compression fitting, hand-tightIntegral Sensor Cable4: 0 - Use when JB or J1 to J5 (below) are selected5, 6Length, Integral Sensor Cable: JB - With junction box7Not available for, Redox (ORP), or Antimony, pH, electrodes (code 5 & 6).Not available for fluoride-resistant electrodes (code F). Compatible with TB82, TB84, 4630/35 and AX46 instruments.Standard hardware kits have Viton O-rings.There are 2 option to connect TB557 to TB82 or TB84 transmitters:Option 1 - use BNC/TC to PIN adapter with conduit fitting or BNC/TC to PIN adaptor. In either case temperature compensator code must be 2 or 4.Option 2 - select T in integral sensor code, not designed for use with extension cables or junction box.TB557: junction box mounted on the sensor. Cable length varies to match body length style. Order code for body style and accessory hardware anything except zero. Requires extension cable. Order code for temperature compensator must be 0, 2 or 4.TB(X)557: junction box mounted on the sensor. Cable length approx. 102mm (4 in.). Order code for body style and accessory hardware anything except zero. Code - # # # # # # # 0, J, B. Requires extension cable. If the junction box is ordered separately and longer cable lengths are desired, enter cable length in integral sensor code.Applicable to sensors with junction boxes only.
