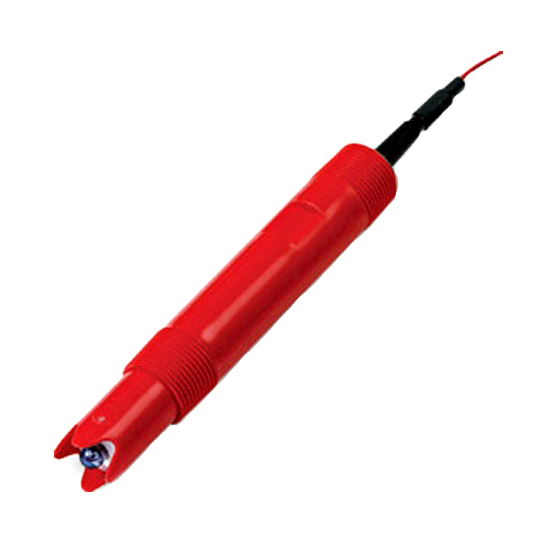

TB556J3E50T20 | ABB TB556 pH/Redox (ORP) Kynar Sensor

Ordering Information Model TB556 Measuring Electrode J Coat-resistant glass/high temperature (5 to 140°C, 0 to 14pH) Integral Thermocompensation 3 Pt100 Tinned leads(1)(2) Liquid Junction E PTFE, notched, Next Step reference(3) Body Style 50 5.0 in. insertion depth Integral Sensor Cable(4) T Tinned/Pin leads, feet(5) Length, Integral Sensor Cable 20 Not available for, Redox (ORP), or Antimony, pH, electrodes (codes 5 & 6).Not available for fluoride-resistant electrodes (code F). Compatible with TB82, TB84, 4630/35 and AX46 instruments.Notched junctions not available for Antimony electrodes.There are 2 options to connect TB556 to TB82 or TB84 transmitters:Option 1 – use BNC/TC to PIN adapter with conduit fitting or BNC/TC to PIN adapter. In either case temperature compensator code must be 2 or 4.Option 2 – select T in integral cable code, not designed for use with extension cables or junction box.For direct connection to type TB82, TB84, 4630/35 and AX46 transmitters, or other supplier devices, using terminal blocks.
