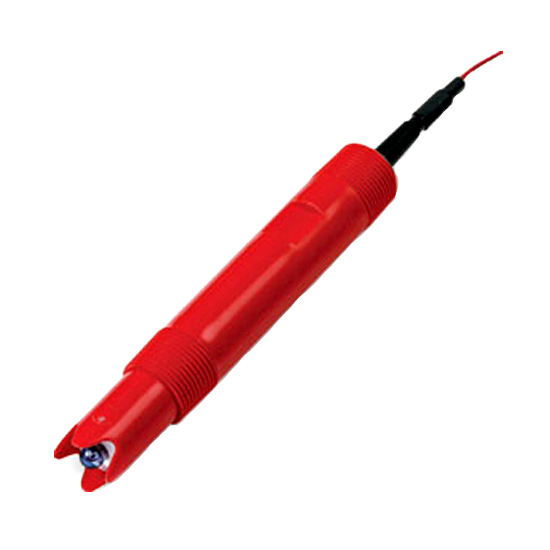

TB556J3D15T300 | ABB TB556 pH/Redox (ORP) Kynar Sensor

Ordering Information Model TB556 Kynar Body pH/ORP Sensor Assembly Measuring Electrode J Coat-resistant glass/high temperature (5 to 140°C, 0 to 14pH) Integral Thermocompensation 3 Pt100 Tinned leads(1)(2) Liquid Junction D Wood, notched, Next Step reference(3) Body Style 15 1.5 in. insertion depth Integral Sensor Cable(4) T Tinned/Pin leads, fee(5) Length, Integral Sensor Cable 30 30 ft (8.8m) 0 Not available for, Redox (ORP), or Antimony, pH, electrodes (codes 5 & 6).Not available for fluoride-resistant electrodes (code F). Compatible with TB82, TB84, 4630/35 and AX46 instruments.Notched junctions not available for Antimony electrodes.There are two options to connect to a transmitter using terminal blocks:Option 1 – use BNC / TC to PIN adapter with conduit fitting or BNC / TC to PIN adapter. In either case temperature compensator code must be 2 or 4.Option 2 – select T in integral cable code, not designed for use with extension cables or junction box.For direct conection to type TB82, TB84, 4630/35 and AX46 transmitters, or other supplier devices, using terminal blocks.
