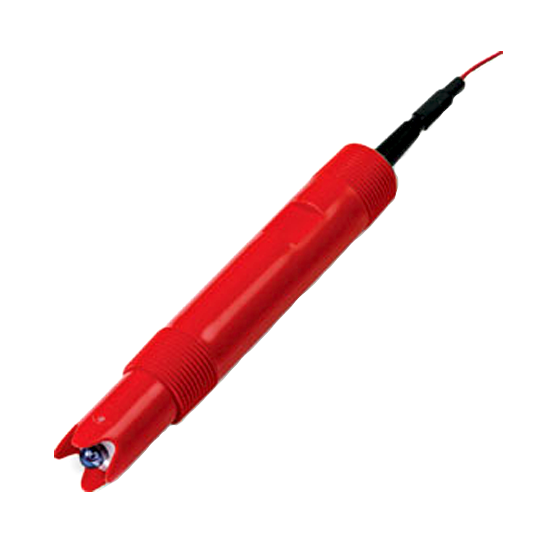

TB556J3D15T10 | ABB TB556 pH/Redox (ORP) Kynar Sensor

Part Number: TB556J3D15T10Ordering InformationModel: TB556Measuring Electrode: J - Coat-resistant glass/high temperature (5 to 140°C, 0 to 14pH)Integral Thermocompensation: 3 - Pt100 Tinned leads¹ ²Liquid Junction: D - Wood, notched, Next Step reference³Body Style: 15 - 1.5 in. insertion depthIntegral Sensor Cable4: T - Tinned/Pin leads, feet5Length, Integral Sensor Cable: 10 - 10 ftNot available for, Redox (ORP), or Antimony, pH, electrodes (code 5 & 6).Not available for fluoride-resistant electrodes (code F). Compatible with TB82, TB84, 4630/35 and AX46 instruments.Notched junctions not available for Antimony electrodes.There are 2 options to connect TB556 to TB82 or TB84 transmitter:Option 1 - use BNC/TC to PIN adapter with conduit fitting or BNC/TC to PIN adapter. In either case temperature compensator code must 2 or 4.Option 2 - Select T in integral cable node, not designed for use with extension cables or junction box.For direct connection to type TB82, TB84, 4630/35 and AX46 transmitters, or other supplier devices, using terminal blocks.
