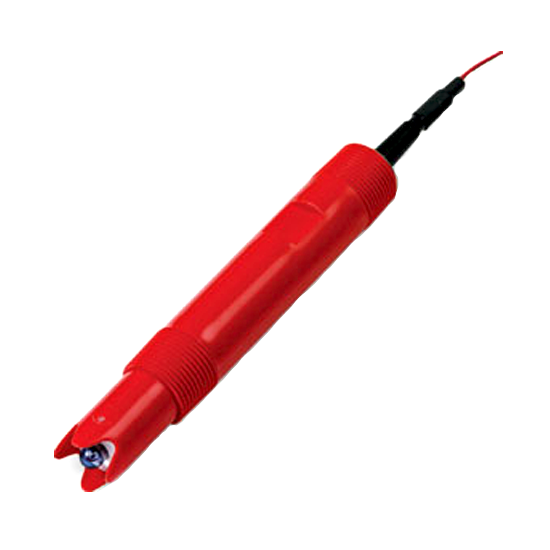

Ordering Information Model TB556 Measuring Electrode J Coat-resistant glass/high temperature (5 to 140°C, 0 to 14pH) Integral Thermocompensation 1 3kO Tinned leads(1) Liquid Junction 6 PTFE, notched Body Style 00 Submersible (Immersion) probe(2) Integral Sensor Cable(3) T Tinned / Pin leads, feet(4) Length, Integral Sensor Cable 30 0 Not available for, Redox (ORP), or Antimony, pH, electrodes (codes 5 & 6).Manufactured as 1.5 in.depth, includes cable strain relief.There are two options to connect to a transmitter using terminal blocks:Option 1 – use BNC / TC to PIN adapter with conduit fitting or BNC / TC to PIN adapter. In either case temperature compensator code must be 2 or 4.Option 2 – select T in integral cable code, not designed for use with extension cables or junction box.For direct conection to type TB82, APA592, TB84, 4630 / 35 and AX46 transmitters, or other supplier devices, using terminal blocks.
