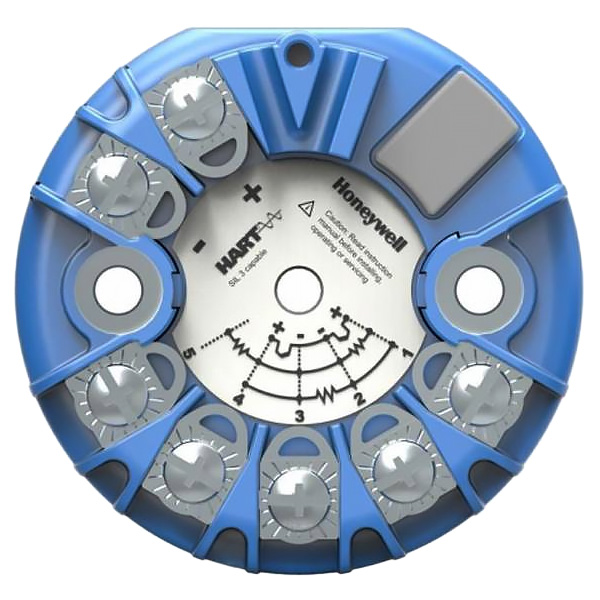

STT700-3H-A20-UV0020-01A1-11S-A-F1,02-00000

The STT700 is an exciting new addition to the SmartLine Temperature portfolio and upgrades the widely-used STT250 temperature transmitter. The STT250 has been Honeywell’s main temperature transmitter with many decades of in-field use. The STT700 is a direct replacement for the STT250 and thus is suitable for the majority of process applications including those for control and safety while delivering excellent performance at a low installed cost.Features:SmartLine platform features including SmartLine Connection Advantage when used with ExperionSingle input supporting up to 4-wire RTD sensor connectionDual input option supporting up to two (2) 3-wire RTD sensor connectionsDigital accuracy up to 0.15°C for RTDCallendar-Van Dusen sensor constants inputHART7 communicationsDE communicationsField housing, head mount, panel mount and DIN rail mounting optionsTransmitter and sensor diagnosticsFM / CSA / ATEX / IEC Ex approvalsFull compliance with SIL 2 / 3 requirement Ordering Information Model STT700 Smart Temperature Transmitter No. Inputs 3 Dual TC or RTD sensor inputs (5 terminations) Output / Protocol H Analog Output: 4-20mA DCDigital Protocol: HART Protocol Approvals A2 ATEX Intrinsically Safe, Flameproof, Dust and Non Sparking Safety 0 No SIL Housing U Polyester Powder Coated Aluminum (STT3000)- 2 conduit (1/2 NPT) connections, body End Cap V Polyester Powder Coated Aluminum (STT3000)- end cap with window Paint Option - Housing 0 Housing - standard offering Paint Option - Cap 0 End cap - no change Interface Selections 2 Integral Display: StandardButtons: Yes (Integral)Languages: English Lightning Protection 0 No lightning protection Mounting Arrangement 0 Bracket Type: None Material: None Customer Tag 1 One Stainless Steel Tag (Up to 4 lines, 26 char / line), wired-on Unassembled Conduit Plugs & Adapters A1 1/2 NPT Male to M20 Female 316 SS Certified Conduit Adapter (qty 2) Application Support 1 Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 1 Write Protect: DisabledFail Mode: High> 21.0mA dcHigh & Low Output Limits(1): Honeywell Std (3.8 - 20.8 mA dc) General Configuration S Factory Standard Accuracy and Calibration A Accuracy: StandardCalibrated Range: Factory StdCalibration Qty: Single Calibration Certifications and Warranty F102 Calibration Test Report & Certificate of Conformance Factory 00000 Factory Identification NAMUR Output Limits 3.8 - 20.5mAdc can be configured by the customer or select custom configuration Table Vc
