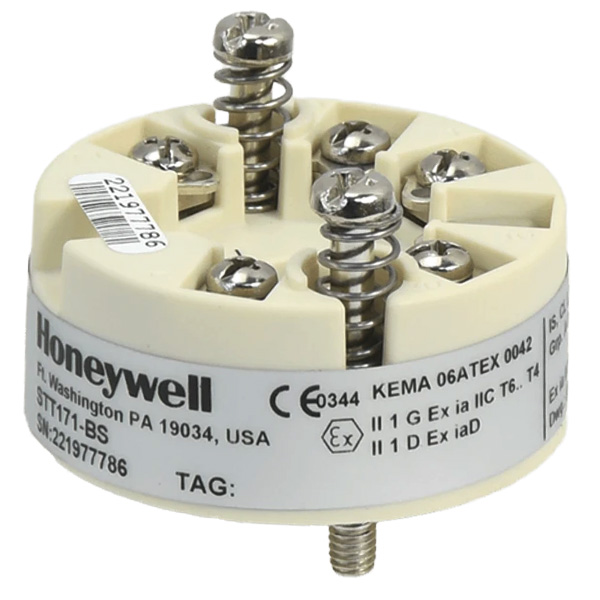

STT17H-BS-0-T0R-000-000-00 Honeywell STT17H Series Smart Temperature Transmitter

FeaturesHART™/4-20 mA outputRTD, T/C, Ohm or mV inputSingle or dual (difference or average) sensor inputDIN form B headmountHART Multidrop capableNAMUR NE43 sensor error responseConfigurable using STT17C configuration tool and PC or HART field communicatorGalvanic isolation Ordering Information Model STT17H HART Protocol, 4-20mA output Safety Approvals BS FM,CSA,ATEX , Intrinsically Safe , Class I, Div. 2, Groups A,B,C,D, T4 No Option 0 No Option Configuration T Custom Transmitter Configuration with Printed Report ** Optional Certificates 0R No OptionCertificate of Conformance/Origin Housing 0 No Housing Supplied Cable/ Conduit Entry 0 Not Applicable - No Housing Supplied Integral Meter 0 No Integral Meter Supplied Mounting 0 No mounting bracket M20 adaptors 0 No adaptors required Lightning Protection 0 No lightning protection supplied Additional Features 00 No Selection ** If Custom Configuration option "T" or the Custom Calibration option "C" is ordered, the configuration or calibration information required must me be entered as a note on the order. Any of the following elements can be included, based on the selected model number:(STT171, STT173, STT17H) Tag Number, CJC, Sensor Type, Sensor Wiring, Temperature Units, URV/LRV, Output Range, Output Limits, Sensor Error Action, Response Time. (STT17F) Tag Number, Sensor Type, URV/LRV, Burnout- High or Low, Response Time
