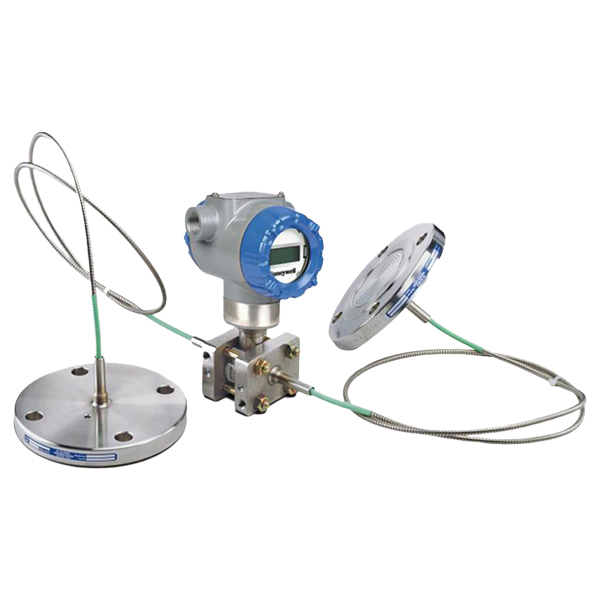

STR74G-11A01D0-BDABA400K-0-CHS-11C-B-30A6-00-0000 | Honeywell STR700 SmartLine Pressure Transmitter with Remote Diaphragm Seals

Ordering Information Model STR74G STR700 SmartLine Remote Diaphragm Seals Number of Seals 1 1 Remote Seal (High Side) Primary Fill Fluid (Meter body) 1 Silicone Oil 200 Construction: In-Line Gauge A 316 SS Bonnet Bolts and Nuts for Transmitter Heads 0 None Secondary Fill Fluid (capillary & seal)** 1 Silicone Oil 200 Connection of Remote Seal to Meter Body** D 2 inch long SS nipple close-coupled Seal Option** 0 None Flush Flanged Seal with Lower** BDA Diaphragm Diameter: 2.4"Flange Size: 2"Flange Pressure Rating(1): ANSI 150Const. - See Spec. Figure 34-ST-03-104: 22 Wetted Material BA Diaphragm: 316L SSUpper Insert: 316L SS Non-Wetted Material (upper, upper insert) 4 Upper: 316L SSUpper Insert: 316L SS Bolts(2) 0 No Selection Flushing Connection and Plugs(3) 0 None Gasket K Approvals 0 No Approvals Required Electronic Housing Material & Connection Type C Material: Polyester Powder Coated AluminumConnection: 1/2 NPTLightning Protection: Yes Output/ Protocol H Analog Output: 4-20mA dcDigital Protocol: HART Protocol Customer Interface Selections S Indicator: Standard (w/internal Zero, Span & Conf Buttons) Ext Zero, Span & Config Buttons: NoneLanguages: EN, RU Application Software 1 Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 1 Write Protect: DisabledFail Mode: High> 21.0mAdcHigh & Low Output Limits(4): Honeywell Std (3.8 - 20.8 mAdc) General Configuration C Custom Configuration (Unit Data Required from customer) Accuracy and Calibration B Accuracy: StandardCalibrated Range: Custom (Unit Data Required)Calibration Qty: Single Calibration Mounting Bracket 3 Bracket Type: Angle BracketMaterial: 316 SS Customer Tag 0 No customer tag Unassembled Conduit Plugs & Adapters A6 1/2 NPT 316 SS Certified Conduit Plug Certifications & Warranty 00 None - No other options Factory 0 0 0 0 Factory Identification ** Refer to 34-ST-00-128 for additional options, consult factoryStandard facing 125-250 AARH RF (raised face) serrated surface finish.Bolt material w ill be same as Upper Material. How ever, if Table I bolts/nuts material is NACE or B7M, seal bolt material w ill be 304 SS NACE.Plastic Plugs are TEMPORARY ONLY to protect threads and MUST be REMOVED before installation NAMUR Output Limits 3.8 - 20.5mAdc can be configured by the customer or select custom configuration Table Vc
