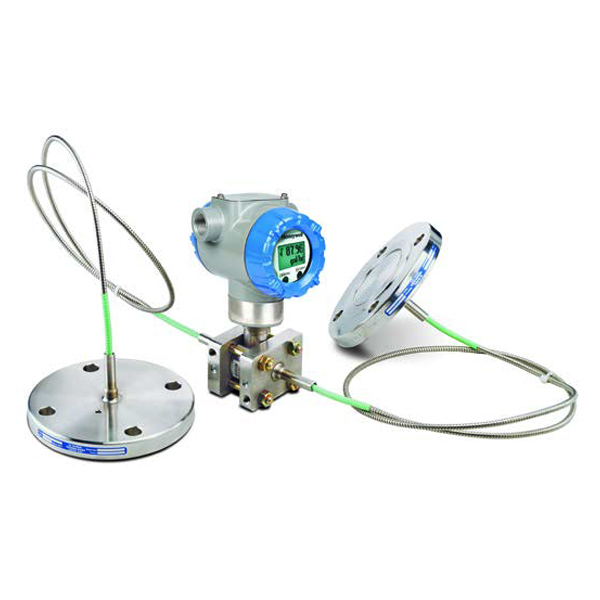

STR745G-11A0000-000000000-0-CHT-11C-0-30A6-0000

Ordering Information Model STR745G SmartLine Pressure Transmitter with Remote Diaphragm Seals Number of Seals 1 1 Remote Seal (High Side) Primary Fill Fluid (Meter body) 1 Silicone Oil 200 In-Line Gauge A 316 SS Bonnet Bolts and Nuts for Transmitter Heads 0 None Secondary Fill Fluid (capillary & seal)** 0 No Fill Fluid Connection of Remote Seal to Meter Body** 0 No Capillary, No Nipple (Specify for VAM Unit Only) Seal Option** 0 0 0 0 0 0 0 0 0 No Seal Attached to Core Transmitter (Specify for VAM Unit Only) Approvals 0 No Approvals Required C Material: Polyester Powder Coated AluminumConnection: 1/2 NPTLightning Protection: Yes Output/ Protocol H Analog Output: 4-20mA dcDigital Protocol: HART Protocol Customer Interface Selections T Indicator: Standard (w/internal Zero, Span & Conf Buttons)Ext Zero, Span & Config Buttons: YesLanguages: EN, RU Application Software 1 Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 1 Write Protect: DisabledFail Mode: High> 21.0mAdcHigh & Low Output Limits¹: Honeywell Std (3.8 - 20.8 mAdc) General Configuration C Custom Configuration (Unit Data Required from customer) Accuracy and Calibration 0 Accuracy: NACalibrated Range: NoneCalibration Qty: None Mounting Bracket 3 Bracket Type: Angle BracketMaterial: 316 SS Customer Tag 0 No customer tag Unassembled Conduit Plugs & Adapters A6 1/2 NPT 316 SS Certified Conduit Plug Factory 0 0 0 0 Factory Identification ** Refer to 34-ST-00-128 for additional options, consult factoryNAMUR Output Limits 3.8 - 20.5mAdc can be configured by the customer or select custom configuration Table Vc
