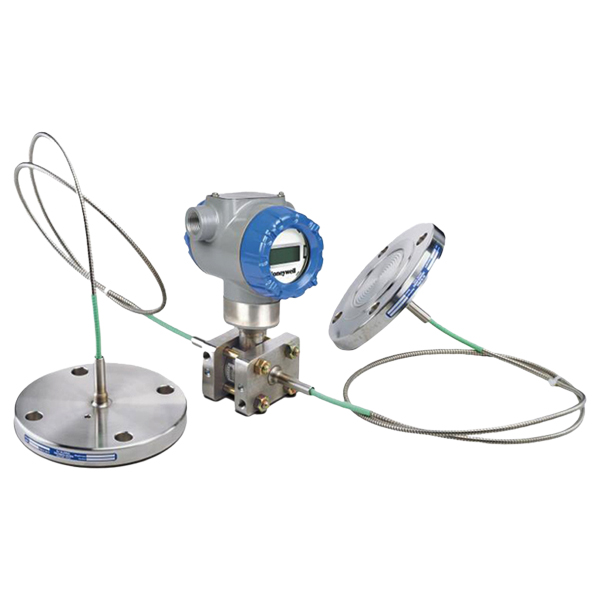

Ordering Information Model STR73D STR700 SmartLine Remote Diaphragm Seals Number of Seals 2 2 Remote Seals Primary Fill Fluid (Meter body) 3 Silicone Oil 704 Construction: Dual Head DP C Non-Wetted Adapter Head Materials: 316 SS (bolt-on heads) Bolts and Nuts for Transmitter Heads S 316 SS Bolts and Nuts Secondary Fill Fluid (capillary & seal)** 3 Silicone Oil 704 Connection of Remote Seal to Meter Body** F Capillary Length: 35 feet (10.7 m), SS Armor Seal Option** 0 None Seal** DDC Diaphragm Diameter: 4.1"Flange Size: 2"Flange Pressure Rating(1): ANSI 300 Wetted Material BA Diaphragm: 316L SS Upper Insert: 316L SS Non-Wetted Material (upper, upper insert) 4 Upper: 316L SS Upper Insert: 316L SS Bolts(2) 0 No Selection Flushing Connections and Plugs(3) N Two 1/4" with metal plugs Gasket K Klinger® C-4401 (non-asbestos) Approvals C ATEX Explosion proof, Intrinsically Safe & Non-incendive Electronic Housing Material & Connection Type G Material: 316 Stainless Steel (Grade CF8M)Connection: 1/2 NPT Lightning Protection: Yes Output/ Protocol H Analog Output: 4-20mA dcDigital Protocol: HART Protocol Customer Interface Selections C Application Software 1 Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 1 Write Protect: DisabledFail Mode: High> 21.0mAdcHigh & Low Output Limits(4): Honeywell Std (3.8 - 20.8 mAdc) General Configuration C Custom Configuration (Unit Data Required from customer) Accuracy and Calibration B Accuracy: StandardCalibrated Range: Custom (Unit Data Required) Calibration Qty: Single Calibration Mounting Bracket 3 Bracket Type: Angle BracketMaterial: 316 SS Customer Tag 1 One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) Unassembled Conduit Plugs & Adapters A6 1/2 NPT 316 SS Certified Conduit Plug Certifications & Warranty TPFXF1 Over-Pressure Leak Test Certificate (1.5X MAWP) (F3392) EN10204 Type 3.1 Material Traceability (FC33341)Calibration Test Report & Certificate of Conformance (F3399) Factory 0000 Factory Identification ** Refer to 34-ST-00-128 for additional options, consult factoryStandard facing 125-250 AARH RF (raised face) serrated surface finish.Bolt material will be same as Upper Material. However, if Table I bolts/nuts material is NACE or B7M, seal bolt material will be 304 SS NACE. Plastic Plugs are TEMPORARY ONLY to protect threads and MUST be REMOVED before installation NAMUR Output Limits 3.8 - 20.5mAdc can be configured by the customer or select custom configuration Table Vc
