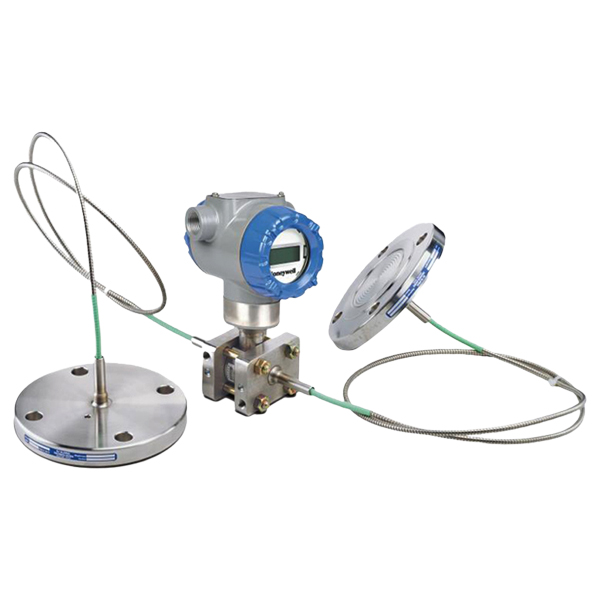

STR73D-22E02K0-GFAGE00A0-A-CDE-11S-A-11A0-OX-0000 | Honeywell STR700 SmartLine Pressure Transmitter with Remote Diaphragm Seals

Ordering Information Model STR73D STR700 SmartLine Remote Diaphragm Seals Number of Seals 2 2 Remote Seals Primary Fill Fluid (Meter body) 2 Fluorinated Oil CTFE Construction: Dual Head DP E 316 SS with all-welded meter body Bolts and Nuts for Transmitter Heads 0 None Secondary Fill Fluid (capillary & seal)** 2 Fluorinated Oil CTFE Connection of Remote Seal to Meter Body** K Capillary Length: 20 feet (6.1 m), PVC Coated SS Armor Seal Option** 0 None Seal** GFA Diaphragm Diameter: 3.5"Flange Size: 3"Flange Pressure Rating(1): ANSI Class 150/300/600 Wetted Material GE Diaphragm: Monel 400®Upper Insert: Monel 400® Non-Wetted Material (upper) 0 No Selection Seal-Capillary Connection 0 No Selection Calibration Rings A None Flushing Connections and Plugs(2) 0 None Approvals A FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof Electronic Housing Material & Connection Type C Material: Polyester Powder Coated AluminumConnection: 1/2 NPTLightning Protection: Yes Output/ Protocol D Analog Output: 4-20mA dcDigital Protocol: DE Protocol Customer Interface Selections E Indicator: AdvancedExt Zero, Span & Config Buttons: Yes Languages: GE, FR, IT, SP, RU, Application Software 1 Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 1 Write Protect: DisabledFail Mode: High> 21.0mAdcHigh & Low Output Limits(3): Honeywell Std (3.8 - 20.8 mAdc) General Configuration S Factory Standard Accuracy and Calibration A Accuracy: StandardCalibrated Range: Factory StdCalibration Qty: Single Calibration Mounting Bracket 1 Bracket Type: Angle BracketMaterial: Carbon Steel Customer Tag 1 One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) Unassembled Conduit Plugs & Adapters A0 No Conduit Plugs or Adapters Required Certifications & Warranty OX Cert Clean for O2 or CL2 service per ASTM G93 Factory 0000 Factory Identification ** Refer to 34-ST-00-128 for additional options, consult factoryStandard facing 125-250 AARH RF (raised face) serrated surface finish.Plastic Plugs are TEMPORARY ONLY to protect threads and MUST be REMOVED before installation.NAMUR Output Limits 3.8 - 20.5mAdc can be configured by the customer or select custom configuration Table Vc.
