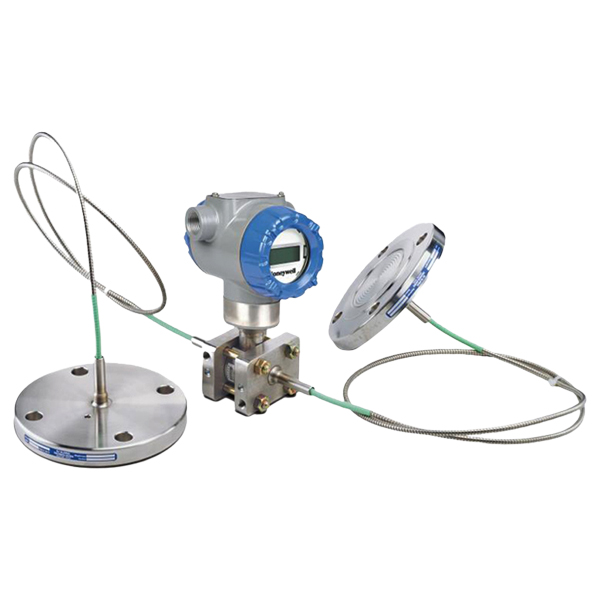

Ordering Information Model STR73D STR700 SmartLine Remote Diaphragm Seals Number of Seals 2 2 Remote Seals Primary Fill Fluid (Meter body) 1 Silicone Oil 200 Construction: Dual Head DP C Non-Wetted Adapter Head Materials: 316 SS (bolt-on heads) Bolts and Nuts for Transmitter Heads S 316 SS Bolts and Nuts Secondary Fill Fluid (capillary & seal)** 3 Silicone Oil 704 Connection of Remote Seal to Meter Body** E Capillary Length: 25 feet (7.5 m), SS Armor Seal Option** 0 None Flush Flanged Seal** (YYY) Wetted Material AA Diaphragm: 316L SSUpper Insert: 316L SS Non-Wetted Material (upper) 2 316L SS Seal-Capillary Connection 1 Center Seal Calibration Rings B 316L SS Flushing Connections and Plugs(1) S Two 1/2" with metal plugs Approvals A FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof Electronic Housing Material & Connection Type E Material: 316 Stainless Steel (Grade CF8M)Connection: 1/2 NPTLightning Protection: None Output/ Protocol F Analog Output: noneDigital Protocol: Foundation Fieldbus Customer Interface Selections B Indicator: BasicExt Zero, Span & Config Buttons: NoneLanguages: English Application Software 1 Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 6 Write Protect: DisabledFail Mode: N/AHigh & Low Output Limits(2): N/A Fieldbus General Configuration S Factory Standard Accuracy and Calibration A Accuracy: StandardCalibrated Range: Factory StdCalibration Qty: Single Calibration Mounting Bracket 1 Bracket Type: Angle BracketMaterial: Carbon Steel Customer Tag 1 One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) Unassembled Conduit Plugs & Adapters A0 No Conduit Plugs or Adapters Required (Y=900) ** Refer to 34-ST-00-128 for additional options, consult factoryPlastic Plugs are TEMPORARY ONLY to protect threads and MUST be REMOVED before installation.NAMUR Output Limits 3.8 - 20.5mAdc can be configured by the customer or select custom configuration Table Vc.
