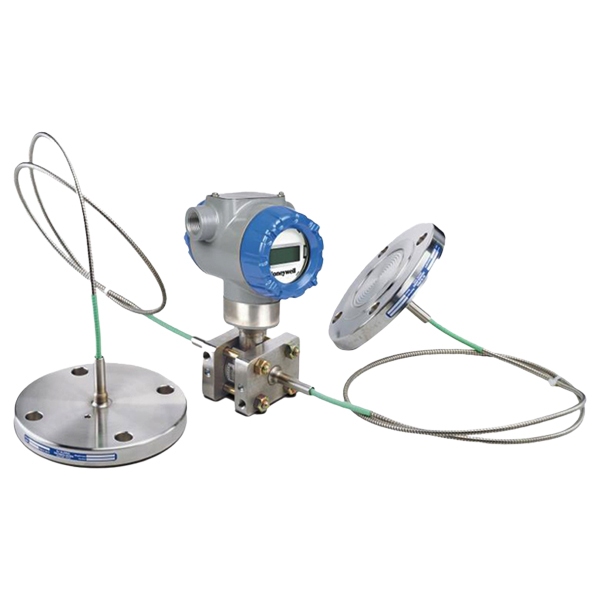

Ordering Information Model STR73D STR700 SmartLine Remote Diaphragm Seals Number of Seals 2 2 Remote Seals Primary Fill Fluid (Meter body) 1 Silicone Oil 200 Construction: Dual Head DP C Non-Wetted Adapter Head Materials: 316 SS (bolt-on heads) Bolts and Nuts for Transmitter Heads S 316 SS Bolts and Nuts Secondary Fill Fluid (capillary & seal)** 1 Silicone Oil 200 Connection of Remote Seal to Meter Body** D Capillary Length: 20 feet (6.1 m), SS Armor Seal Option** 0 None Seal with Threaded Process Connection LJG Diaphragm Diameter: 4.1"Threaded Process Connection Size (NPT Female): 1/2 NPTPressure RatingCS Bolts: 1,500 psi304 SS Bolts: 750 psi Wetted Material JB Diaphragm: 316L SSLower: 316L SS Non-Wetted Material (upper) C CS (Nickel Plated) Bolts(1) D 304 SS Flushing Connections and Plugs(2) S Two 1/2" with metal plugs Gasket K Klinger® C-4401 (non-asbestos) Approvals A FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof Electronic Housing Material & Connection Type C Material: Polyester Powder Coated AluminumConnection: 1/2 NPTLightning Protection: Yes Output/ Protocol F Analog Output: NoneDigital Protocol: Foundation Fieldbus Customer Interface Selections B Indicator: BasicExt Zero, Span & Config Buttons: NoneLanguages: English Application Software 1 Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 6 Write Protect: Fail Mode: High & Low Output Limits(3): N/A Fieldbus General Configuration S Factory Standard Accuracy and Calibration A Accuracy: StandardCalibrated Range: Factory StdCalibration Qty: Single Calibration Mounting Bracket 3 Bracket Type: Angle BracketMaterial: 316 SS Customer Tag 1 One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) Unassembled Conduit Plugs & Adapters A6 1/2 NPT 316 SS Certified Conduit Plug Certifications & Warranty TPF1 Over-Pressure Leak Test Certificate (1.5X MAWP) (F3392)Calibration Test Report & Certificate of Conformance (F3399) Factory 0000 Factory Identification ** Refer to 34-ST-00-128 for additional options, consult factoryIf Table I Bolts and Nuts material option is NACE, Bolts and Nuts w ill ship with Alloy Steel NACE and MAWP may change.Plastic Plugs are TEMPORARY ONLY to protect threads and MUST be REMOVED before installationNAMUR Output Limits 3.8 - 20.5mAdc can be configured by the customer or select custom configuration Table Vc
