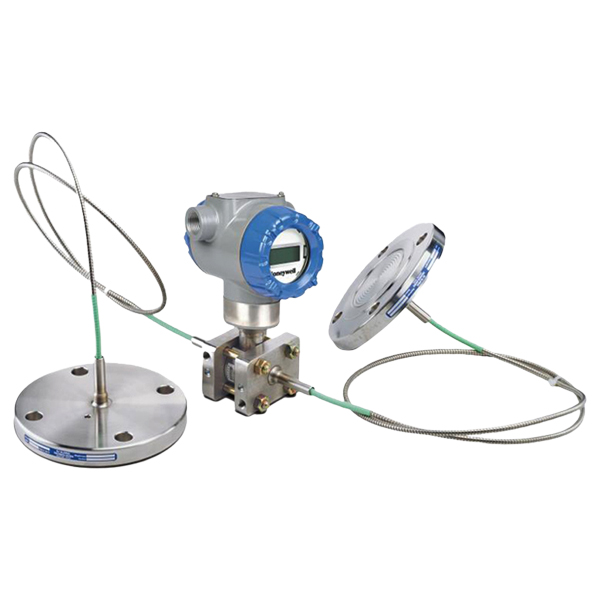

Ordering Information Model STR73D STR700 SmartLine Remote Diaphragm Seals Number of Seals 2 2 Remote Seals Primary Fill Fluid (Meter body) 1 Silicone Oil 200 Construction: Dual Head DP C Non-Wetted Adapter Head Materials: 316 SS (bolt-on heads) Bolts and Nuts for Transmitter Heads S 316 SS Bolts and Nuts Secondary Fill Fluid (capillary & seal)** 1 Silicone Oil 200 Connection of Remote Seal to Meter Body** B Capillary Length: 10 feet (3.0 m), SS Armor Seal Option** 4 Teflon Coated Seal Diaphragm - only for anti-sticking SealSeal with Threaded Process Connection JKG Diaphragm Diameter: 2.4"Threaded Process Connection Size (NPT Female): 3/4 NPTPressure Rating:CS Bolts - 2,500 psi304 SS Bolts - 1,250 psi Wetted Material JC Diaphragm: Hastelloy® C-276 Lower: 316L SS Non-Wetted Material (upper) C 316 Stainless Steel Bolts(1) D 304 SS Flushing Connections and Plugs(2) N Two 1/4" with metal plugs Gasket T Teflon® Approvals A FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof Electronic Housing Material & Connection Type C Material: Polyester Powder Coated AluminumConnection: 1/2 NPT Lightning Protection: Yes Output/ Protocol H Analog Output: 4-20mA dcDigital Protocol: HART Protocol Customer Interface Selections S Indicator: Standard (w/internal Zero, Span & Conf Buttons)Ext Zero, Span & Config Buttons: NoneLanguages: EN, RU Application Software 1 Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 1 Write Protect: DisabledFail Mode: High> 21.0mAdcHigh & Low Output Limits(3): Honeywell Std (3.8 - 20.8 mAdc) General Configuration S Factory Standard Accuracy and Calibration A Accuracy: StandardCalibrated Range: Factory Std Calibration Qty: Single Calibration Mounting Bracket 2 Bracket Type: Angle BracketMaterial: 304 SS Customer Tag 0 No customer tag Unassembled Conduit Plugs & Adapters A0 No Conduit Plugs or Adapters Required Certifications & Warranty FXF1TP EN10204 Type 3.1 Material Traceability (FC33341)Calibration Test Report & Certificate of Conformance (F3399)Over-Pressure Leak Test Certificate (1.5X MAWP) (F3392) Factory 0000 Factory Identification ** Refer to 34-ST-00-128 for additional options, consult factoryBolt material will be same as Upper Material. However, if Table I bolts/nuts material is NACE or B7M, seal bolt material will be 304 SS NACE. Plastic Plugs are TEMPORARY ONLY to protect threads and MUST be REMOVED before installation NAMUR Output Limits 3.8 - 20.5mAdc can be configured by the customer or select custom configuration Table Vc
