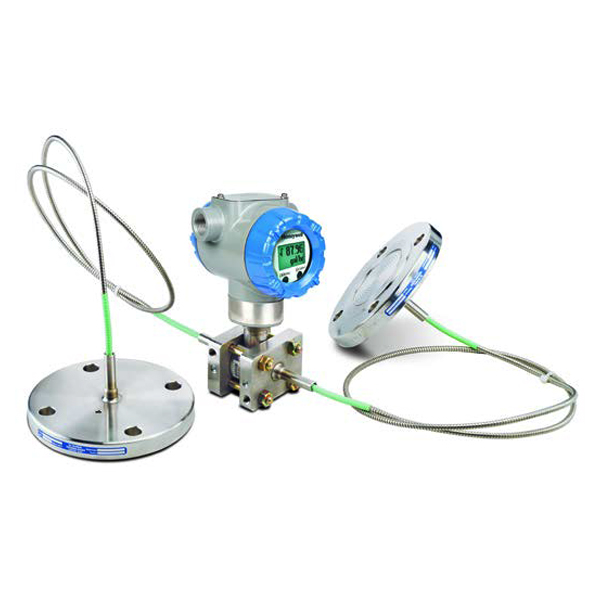

Ordering Information Model STR735D SmartLine Pressure Transmitter with Remote Diaphragm Seals Number of Seals 2 2 Remote Seals Primary Fill Fluid (Meter body) 1 Silicone Oil 200 Dual Head DP C 316 SS (bolt-on heads) Bolts and Nuts for Transmitter Heads S 316 SS Bolts and Nuts Secondary Fill Fluid (capillary & seal)** 1 Silicone Oil 200 Connection of Remote Seal to Meter Body** D Capillary Length: 20 feet (6.1m), SS Armor Seal Option** 0 None Flush Flanged Seal with Lower** JKG Diaphragm Diameter: 2.4" Threaded Process Connection Size (NPT Female): 3/4 NPTPressure Rating:CS Bolts - 2,500 psi304 SS Bolts - 1,250 psi Wetted Material JD Diaphragm: Hastelloy® C-276Upper Insert: Hastelloy® C-276 Non-Wetted Material (upper) C 316 Stainless Steel Bolts(1) D 304 SS Flushing Connections and Plugs(2) 0 None Gasket T Teflon® Approvals C ATEX Explosion proof, Intrinsically Safe & Non-incendive Electronic Housing Material & Connection Type B Material: Polyester Powder Coated AluminumConnection: M20Lightning Protection: None Output/ Protocol H Analog Output: 4-20mA dcDigital Protocol: HART Protocol Customer Interface Selections T Indicator: Standard (w/internal Zero, Span & Conf Buttons)Ext Zero, Span & Config Buttons: YesLanguages: EN, RU Application Software 1 Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 1 Write Protect: DisabledFail Mode: High> 21.0mAdcHigh & Low Output Limits(3): Honeywell Std (3.8 - 20.8 mAdc) General Configuration S Factory Standard Accuracy and Calibration B Accuracy: StandardCalibrated Range: Custom (Unit Data Required) Calibration Qty: Single Calibration Mounting Bracket 3 Bracket Type: Angle BracketMaterial: 316 SS Customer Tag 1 One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) Unassembled Conduit Plugs & Adapters A7 M20 316 SS Certified Conduit Plug Certifications & Warranty FXF1 EN10204 Type 3.1 Material TraceabilityCalibration Test Report & Certificate of Conformance Factory 0000 Factory Identification ** Refer to 34-ST-00-128 for additional options, consult factoryIf Table I Bolts and Nuts material option is NACE, Bolts and Nuts will ship with Alloy Steel NACE and MAWP may change. Plastic Plugs are TEMPORARY ONLY to protect threads and MUST be REMOVED before installationNAMUR Output Limits 3.8 - 20.5mAdc can be configured by the customer or select custom configuration Table Vc
