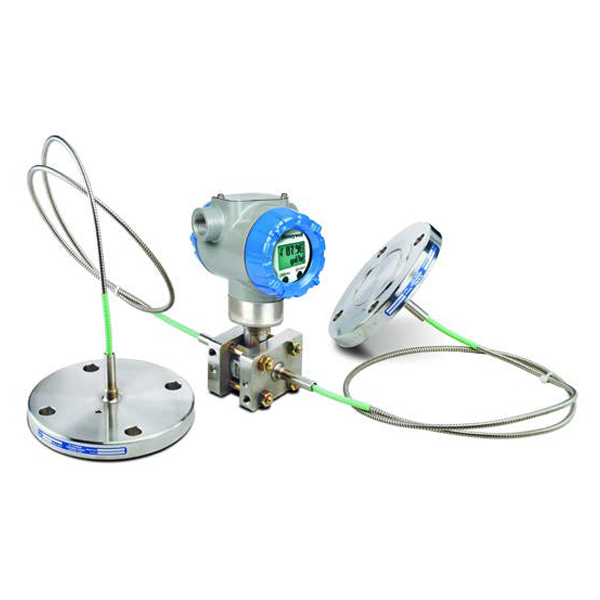

STR735D-21CC1H0-AFMAF21A0-0-AHS-11C-A-10A0-F1-0000

Ordering Information Model STR735D SmartLine Pressure Transmitter with Remote Diaphragm Seals Number of Seals 2 2 Remote Seals Primary Fill Fluid (Meter body) 1 Silicone Oil 200 Dual Head DP C 316 SS (bolt-on heads) Bolts and Nuts for Transmitter Heads C Carbon Steel Bolts and Nuts Secondary Fill Fluid (capillary & seal)** 1 Silicone Oil 200 Connection of Remote Seal to Meter Body** H Capillary Length: 10 feet (3.0m), PVC Coated SS Armor Seal Option** 0 None Flush Flanged Seal with Lower** AFM Diaphragm Diameter: 3.5"Flange Size: 80mmFlange Pressure Rating(1): DIN DN80-PN40 Wetted Material AF Diaphragm: Tantalum(2)Upper Insert: 316L SS Non-Wetted Material (upper, upper insert) 2 316L SS Seal-Capillary Connection 1 Center Seal Calibration Rings A None Flushing Connection and Plugs(3) 0 None Approvals 0 No Approvals Required Electronic Housing Material & Connection Type A Material: Polyester Powder Coated AluminumConnection: 1/2 NPTLightning Protection: None Output/ Protocol H Analog Output: 4-20mA dcDigital Protocol: HART Protocol Customer Interface Selections S Indicator: Standard (w/internal Zero, Span & Conf Buttons)Ext Zero, Span & Config Buttons: NoneLanguages: EN, RU Application Software 1 Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 1 Write Protect: DisabledFail Mode: High> 21.0mAdcHigh & Low Output Limits(3): Honeywell Std (3.8 - 20.8 mAdc) General Configuration C Custom Configuration (Unit Data Required from customer) Accuracy and Calibration A Accuracy: StandardCalibrated Range: Factory StdCalibration Qty: Single Calibration Mounting Bracket 1 Bracket Type: Angle BracketMaterial: Carbon Steel Customer Tag 0 No customer tag Unassembled Conduit Plugs & Adapters A0 No Conduit Plugs or Adapters Required Certifications & Warranty F1 Calibration Test Report & Certificate of Conformance Factory 0000 Factory Identification ** Refer to 34-ST-00-128 for additional options, consult factoryStandard facing 125-250 AARH RF (raised face) serrated surface finish.Tantalum Upper insert has Tantalum wetted parts and 316 SS or CS non-wetted partsPlastic Plugs are TEMPORARY ONLY to protect threads and MUST be REMOVED before installation.NAMUR Output Limits 3.8 - 20.5mAdc can be configured by the customer or select custom configuration Table Vc.
