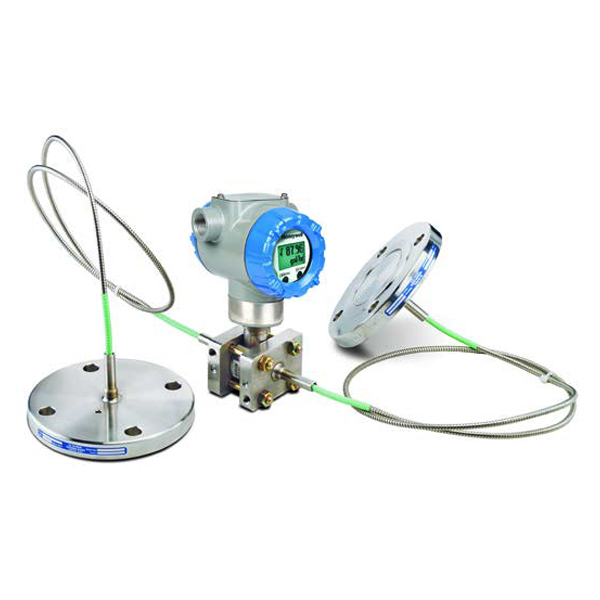

STR735D-21CC1CC0-DDABA400K-A-AHS-11C-A-11A0-F1 | Honeywell STR735D SmartLine Pressure Transmitter with Remote Diaphragm Seals

Ordering Information Model STR735D SmartLine Pressure Transmitter with Remote Diaphragm Seals Number of Seals 2 2 Remote Seals Primary Fill Fluid (Meter body) 1 Silicone Oil 200 Dual Head DP C 316 SS (bolt-on heads) Bolts and Nuts for Transmitter Heads C Carbon Steel Bolts and Nuts Secondary Fill Fluid (capillary & seal)** 1 Silicone Oil 200 Connection of Remote Seal to Meter Body** C Capillary Length: 15 feet (4.5m), SS Armor Seal Option** 0 None Flush Flanged Seal with Lower** DDA Diaphragm Diameter: 4.1"Flange Size:2"Flange Pressure Rating(1): ANSI 150Const.: 23 Wetted Material BA Diaphragm: 316L SSLower: 316L SS Non-Wetted Material (upper, upper insert) 4 Upper: 316L SSUpper Insert: 316L SS Bolts(2) 0 No Selection Flushing Connection and Plugs(3) 0 None Gasket K Klinger® C-4401 (non-asbestos) Approvals A FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof Electronic Housing Material & Connection Type A Material: Polyester Powder Coated AluminumConnection: 1/2 NPTLightning Protection: None Output/ Protocol H Analog Output: 4-20mA dcDigital Protocol: HART Protocol Customer Interface Selections S Indicator: Standard (w/internal Zero, Span & Conf Buttons)Ext Zero, Span & Config Buttons: NoneLanguages: EN, RU Application Software 1 Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 1 Write Protect: DisabledFail Mode: High> 21.0mAdcHigh & Low Output Limits(4): Honeywell Std (3.8 - 20.8 mAdc) General Configuration C Custom Configuration (Unit Data Required from customer) Accuracy and Calibration A Accuracy: StandardCalibrated Range: Factory StdCalibration Qty: Single Calibration Mounting Bracket 1 Bracket Type: Angle BracketMaterial: Carbon Steel Customer Tag 1 One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) Unassembled Conduit Plugs & Adapters A0 No Conduit Plugs or Adapters Required Certifications & Warranty F1 Calibration Test Report & Certificate of Conformance ** Refer to 34-ST-00-128 for additional options, consult factoryStandard facing 125-250 AARH RF (raised face) serrated surface finish.Bolt material w ill be same as Upper Material. How ever, if Table I bolts/nuts material is NACE , seal bolt material w ill be 304 SS NACE.Plastic Plugs are TEMPORARY ONLY to protect threads and MUST be REMOVED before installationNAMUR Output Limits 3.8 - 20.5mAdc can be configured by the customer or select custom configuration Table Vc
