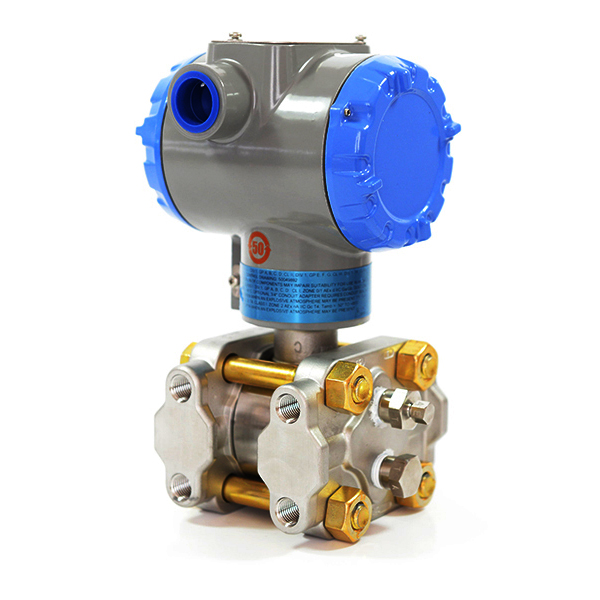

STG78L-E1H000-1-C-AH0-11C-A-01A0-FX,F1-0000

Ordering Information Model STG78L STG700 Gauge Pressure Transmitters Process Head & Diaphragm Materials E Process Head/Reference Head Material(1): 316 Stainless Steel / 316 Stainless SteelBarrier Diaphragm Material: 316L SS Fill Fluid 1 Silicone Oil 200 Process Connection H Size/Type: 1/2" NPT (male)Material: Same as Process Head Bolt/Nuts Materials 0 None Vent/Drain Type/Location 0 Head Type: NoneVent Type: NoneLocation: NoneVent Material: None Gasket Materials 0 None Head/Connect Orientation 1 StandardHigh Side Left, Low Side Right(2) / Std Head Orientation Approvals C ATEX Explosion proof, Intrinsically Safe & Non-incendive Electronic Housing Material & Connection Type A Material: Polyester Powder Coated Aluminum Connection: 1/2 NPT Lightning Protection: None Output/ Protocol H Analog Output: 4-20mA dc Digital Protocol: HART Protocol Customer Interface Selections 0 Indicator: NoneExt Zero, Span & Config Buttons: NoneLanguages: None Application Software 1 Standard Diagnostics 1 Write Protect: DisabledFail Mode: High> 21.0mAdcHigh & Low Output Limits(3): Honeywell Std (3.8 - 20.8 mAdc) General Configuration C Custom Configuration (Unit Data Required from customer) Accuracy and Calibration A Accuracy: StandardCalibrated Range: Factory StandardCalibration Qty: Single Calibration Mounting Bracket 0 Bracket Type: NoneMaterial: None Customer Tag 1 One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) Unassembled Conduit Plugs & Adapters A0 No Conduit Plugs or Adapters Required Certifications & Warranty FXF1 EN10204 Type 3.1 Material Traceability (FC33341)Calibration Test Report & Certificate of Conformance (F3399) Factory 0000 Factory Identification Reference head available with Dual Head Gage models only. In-Line Gage models are supplied w ith Process Head only. Left side/Right side as viewed from the customer connection perspective
