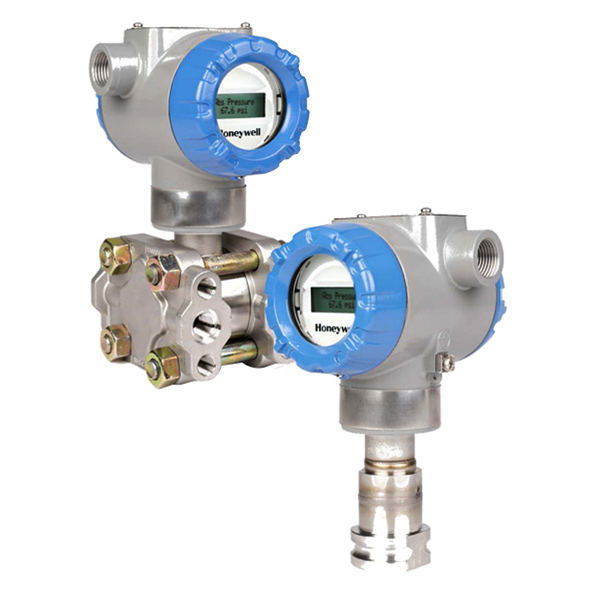

Ordering Information Model STG77S Gauge In-Line Pressure Transmitter Process Head & Diaphragm Materials F Process Head/Reference Head Material:(1) 316 Stainless SteelBarrier Diaphragm Material: Hastelloy C - 276 Fill Fluid 1 Silicone Oil 200 Process G Size/Type: 1/2" NPT (female)Material: Same as Process Head(2) Bolt/Nuts Materials 0 None Vent/Drain Type/Location 0 Head Type: NoneVent Type: NoneLocation: NoneVent Material: None Gasket Materials 0 None Head/Connect Orientation 1 Meter Body: StandardHigh Side Left, Ref Side Right(3) / Std Head Orientation Approvals A Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof Electronic Housing Material & Connection Type E Material: 316 Stainless Steel (Grade CF8M) Connection: 1/2 NPTLighting Protection: None Output/Protocol H Analog Output: 4-20mA dcDigital Protocol: HART Protocol Customer Interface Selectios S Indicator: Standard (w/Internal Zero, Span & Config buttons)Ext Zero, Span & Config Buttons: NoneLanguages: EN, RU Application Software 1 Diagnostics: Standard Diagnostics Output Limit, Failsafe & Write Protect Settings 1 Write Protect: DisabledFail Mode: High> 21.0mAdcHigh & Low Output Limits:(4) Honeywell Std (3.8 - 20.8 mAdc) General Configuration S Factory Standard Accuracy & Calibration A Accuracy: StandardCalibrated Range: Factory StandardCalibration Qty: Single Calibration Mounting Bracket 1 Bracket Type: Angle BracketMaterial: Carbon Steel Customer Tag 0 No customer tag Unassembled Conduit Plugs & Adapters A0 No Conduit Plugs or Adapters Required Reference head available w ith Dual Head Gage models only. In-Line Gage models are supplied w ith Process Head only.STG735,745,775 supplied via 1/2" f lange adapter same material as process head except carbon steel shall use 316 SSLef t side/Right side as view ed f rom the customer connection perspectiveNAMUR Output Limits are configurable by customer
